Flat Panel Ceiling Lift FPLC V2-75+LM+LOCK

FPLC V2-75+LM+LOCK

FPLC V2+LM series is completed with heavy duty models for TV sets over 65". FPLCV2-75+LM+LOCK model  offers vertical lowering motion, for applications with increased floor-ceiling distance.   Maximum safety is achieved in closed position with the electric safety locking system.   Its silent operation and smooth motion make this model an elegant and reliable solution!

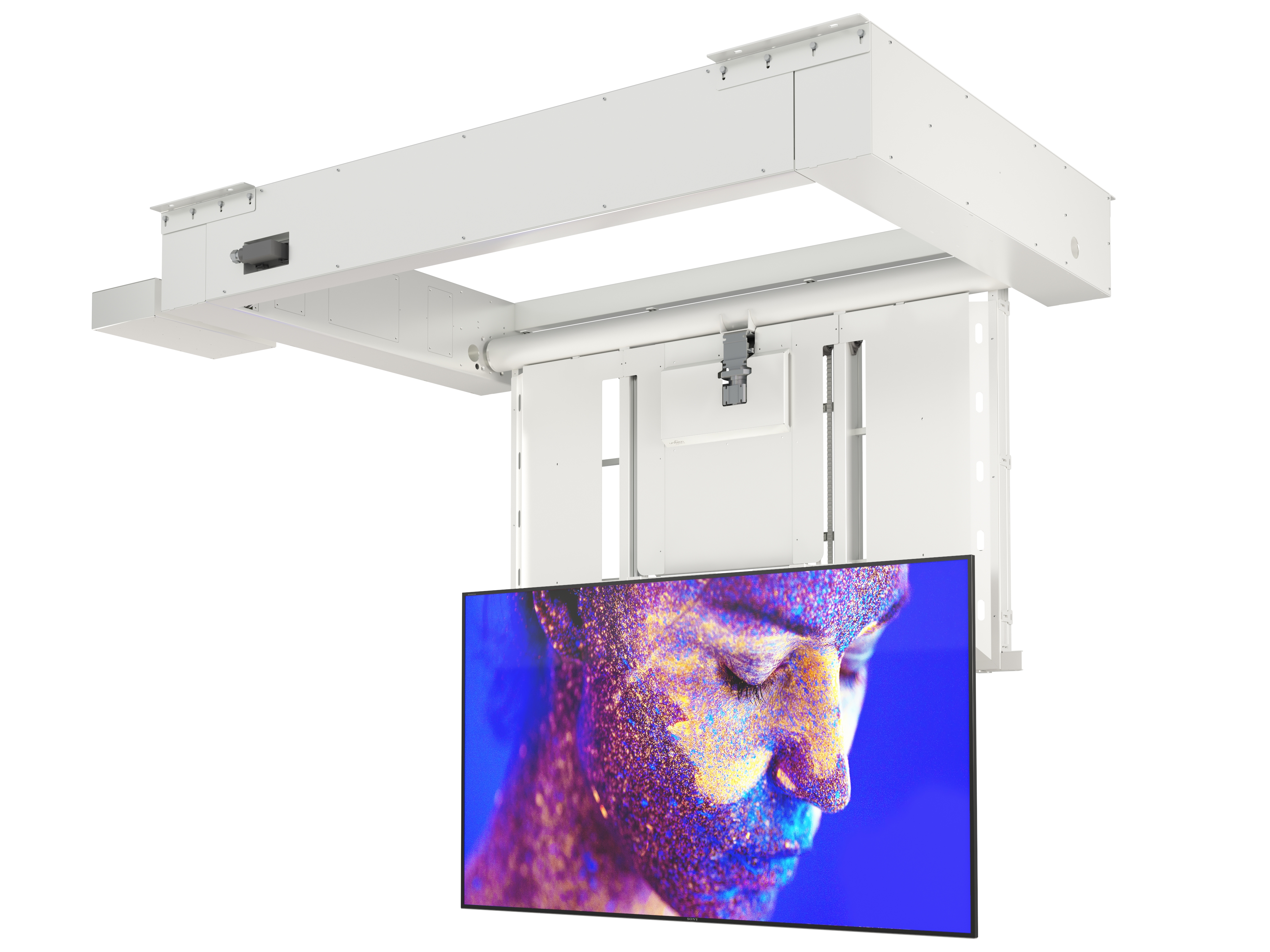

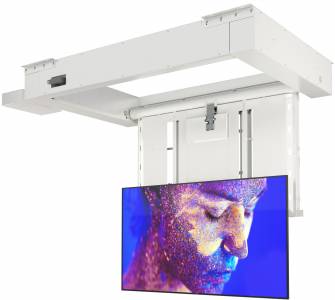

Fplcv2 85+Lm+Lock Main Image
Fplcv2 85+Lm+Lock Main Image

Features

  • Suitable for TV with maximum dimensions (WxHxD) ≤ 1700x1000x90mm
  • Maximum load capacity (TV+ceiling cover): 65kg (max.load for ceiling cover 17kg)
  • Lift dimensions (WxHxD): 2050x255x1420mm, not included control box size
  • Opening swiveling angle from ceiling: 95ο
  • Maximum vertical drop down length : 710mm
  • For maximum vesa mounting up to: 600x400mm
  • Safety locking system in closed position for maximum safety in application
  • Standard color of metallic parts : powder coating in RAL 9005 black or  RAL 9016 white

Specifications

  • Suitable for TV with maximum dimensions (WxHxD) ≤ 1700x1000x90mm
  • Maximum load capacity (TV+ceiling cover): 65kg (max.load for ceiling cover 17kg)
  • Lift dimensions (WxHxD): 2050x255x1420mm, not included control box size
  • Opening swiveling angle from ceiling: 95ο
  • Maximum vertical drop down length : 710mm
  • For maximum vesa mounting up to:600x400mm
  • Safety locking system in closed position for maximum safety in application
  • Standard color of metallic parts : powder coating in RAL 9005 black or  RAL 9016 white
  • Power supply : 230VAC-50/60Hz
  • Standard control option:  dry contacts control box
  • Optional controls: RF remote control, RS 232  ports

Manuals

Only for Registered Users
