Projector Ceiling Lift PLCV5.4HD

PLC V5.4HD

Low profile Ceiling Lift suitable for false ceilings with small inner height and for maximum load (projector+ceiling cover) up to 50kg. With standard run length up to 500mm, PLC V5.4HD is the ideal solution for demanding applications in low depth ceilings and is characterized by excellent utility, great stability and great accuracy in up and down position.

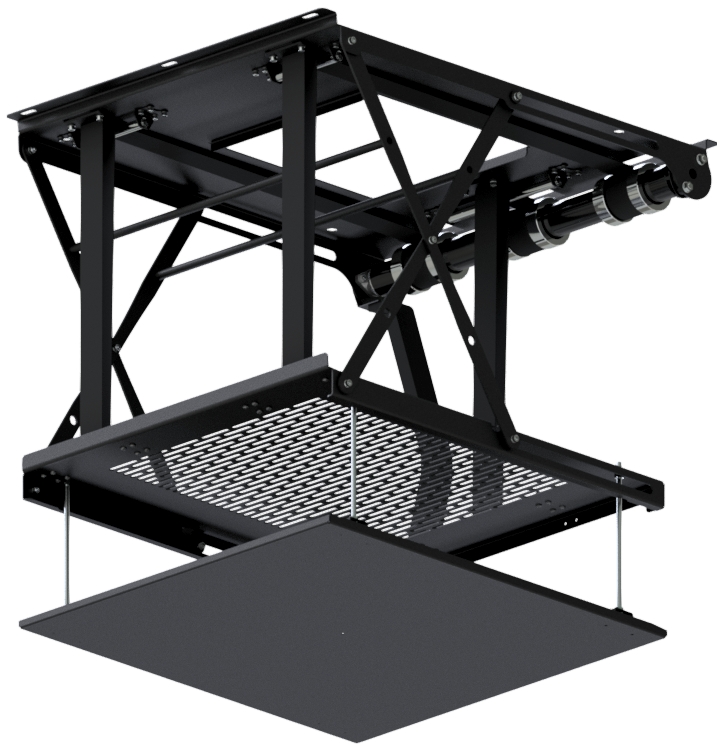

Plc V5 4Hd Main Image
Plc V5 4Hd Main Image

Features

  • Maximum load capacity (projector+ceiling cover) up to 50kg
  • Maximum projector dimensions (WxD) ≤588x707mm
  • Lift dimensions (WxHxD): 720x(85+projector height)x850mm
  • Lift weight: ~47kg
  • Minimum ceiling hole required: 750x860mm
  • Standard run length: 500mm
  • Optional extra drop ability selection, with run length increased by +500mm each time, for maximum 2 times, with lift height increase by 46mm each time
  • When extra drop ability is selected, maximum load capacity is reduced at 45kg
  • Standard color of metallic parts: RAL 9005 black
  • Optional RAL color selection: up on request

Specifications

  • Maximum load capacity (projector+ceiling cover) up to 50kg
  • Maximum projector dimensions (WxD) ≤588x707mm
  • Lift dimensions (WxHxD): 720x(85+projector height)x850mm
  • Lift weight: ~48kg
  • Minimum ceiling hole required: 750x860mm
  • Standard run length: 500mm
  • Optional extra drop ability selection, with run length increased by +500mm each time, for maximum 2 times, with lift height increase by 46mm each time
  • When extra drop ability is selected, maximum load capacity is reduced at 45kg
  • Standard color of metallic parts: RAL 9005 black
  • Optional RAL color selection: up on request
  • Default control method: wall switch over 230VAC
  • Optional controls: RF remote control, dry contacts, RS 232 port on external control box
  • Power Supply: 230VAC



Manuals

Only for Registered Users
