Projector Ceiling Lift PLCV5.3HD

PLC V5.3HD

New improved features! Low profile Ceiling Lift suitable for false ceilings with small inner height and for maximum load capacity (projector+ceiling cover) up to 35kg. With standard run length from 300mm up to 900mm, PLC V5.3HD is characterized by excellent utility, great stability and great accuracy in up and down position.

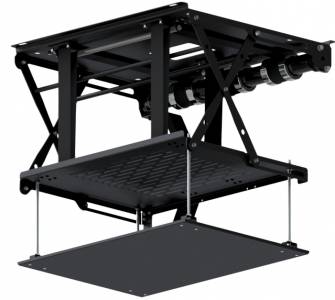

Plc V5 3Hd Main Image
Plc V5 3Hd Main Image

Features

  • Maximum load capacity (projector+ceiling cover) up to 35kg
  • Maximum projector dimensions (WxD) ≤555x495mm
  • Lift dimensions (WxD): 690x596mm
  • Lift height (H):71mm+ projector height
  • Lift weight: ~31kg
  • Minimum ceiling hole required: 720x630mm
  • Standard run length: 300mm
  • Optional extra drop ability selection, with run length increase by +300mm each time, for maximum 2 times, with lift height increase by 35mm each time
  • When extra drop ability is selected, maximum load capacity is reduced at 30kg
  • Standard color of metallic parts: RAL 9005 black
  • Optional RAL color selection: up on request

Specifications

  • Maximum load capacity (projector+ceiling cover) up to 35kg
  • Maximum projector dimensions (WxD) ≤555x495mm
  • Lift dimensions (WxD): 690x596mm
  • Lift height (H):71mm+ projector height
  • Lift weight: ~31kg
  • Minimum ceiling hole required: 720x630mm
  • Standard run length: 300mm
  • Optional extra drop ability selection, with run length increase by +300mm each time, for maximum 2 times, with lift height increase by 35mm each time
  • When extra drop ability is selected, maximum load capacity is reduced at 30kg
  • Standard color of metallic parts: RAL 9005 black
  • Optional RAL color selection: up on request
  • Default control method: wall switch over 230VAC
  • Optional controls: RF remote control, dry contacts, RS 232  ports on external control box
  • Power supply 230VAC
