Projector Ceiling Lift PLCV2.2

PLC V2.2

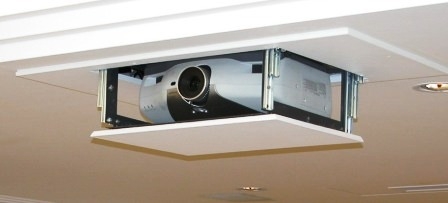

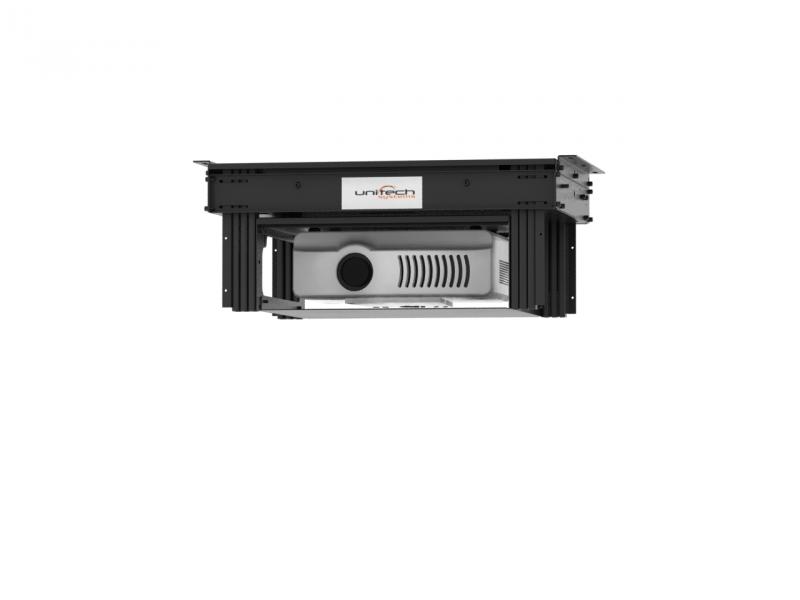

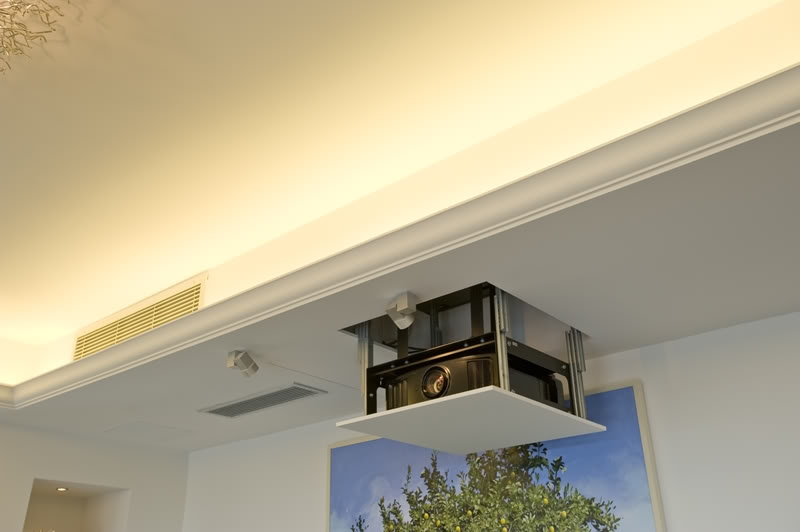

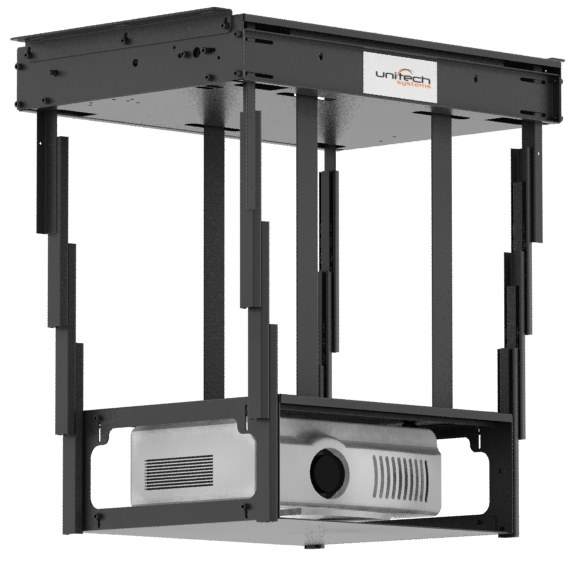

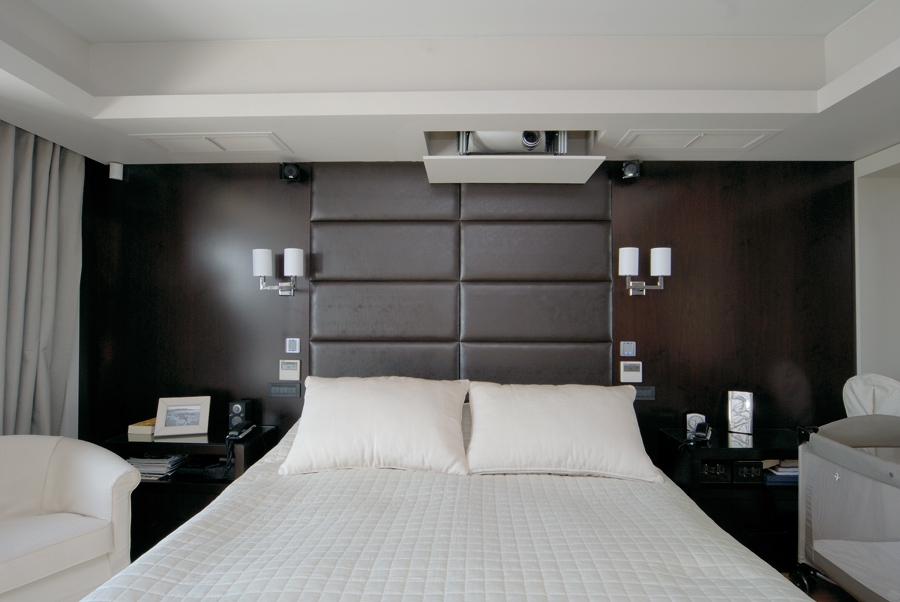

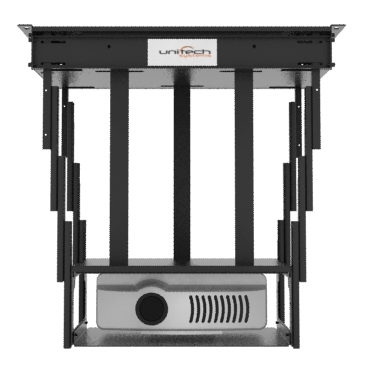

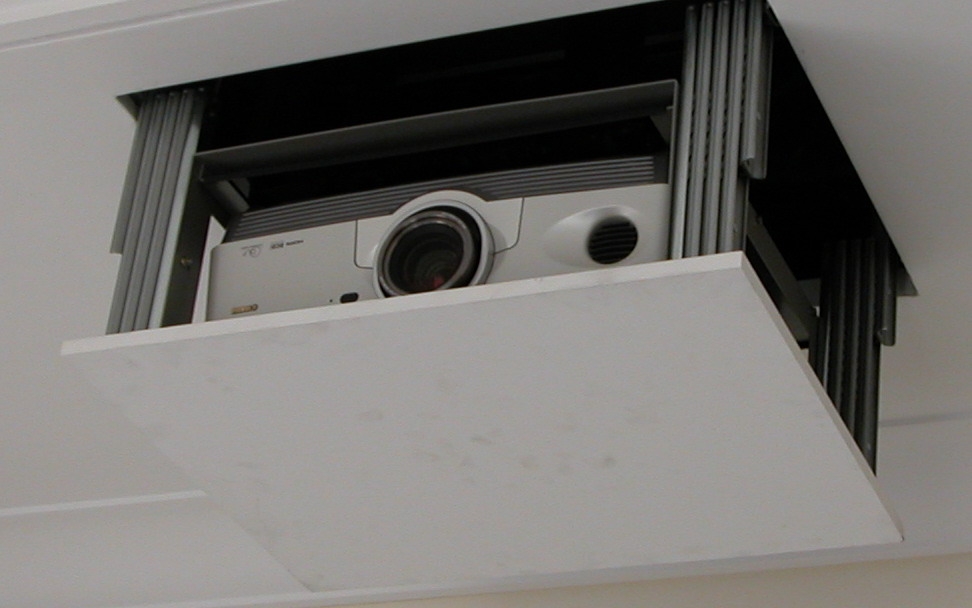

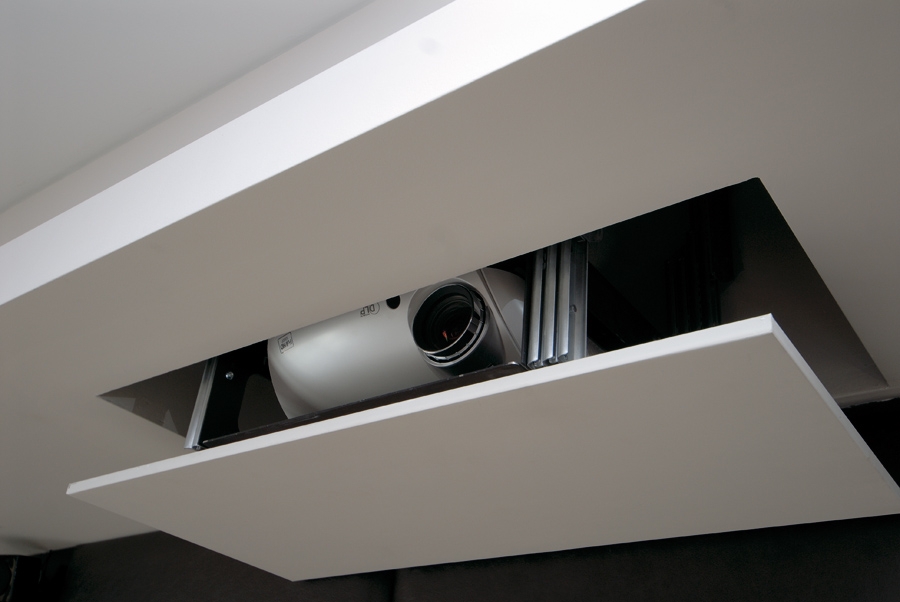

Projector Ceiling lift, suitable for most projector models up to ~25kg. PLC V2.2 is a heavy duty construction characterized by excellent utility, great stability and absolute accuracy in up and down position. Its run length is 780mm and it provides projections solution in every room.

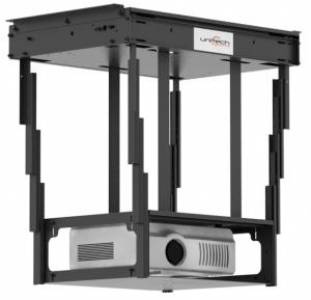

Plc V2 2 Main Image
Plc V2 2 Main Image

Features

  • Maximum load capacity (projector+ceiling cover) up to 25kg
  • Maximum projector dimensions (WxHxD) ≤505x185x509mm
  • Lift dimensions (WxHxD): 796x305x509mm
  • Lift weight: 42kg
  • Ceiling hole required: 800x530mm
  • Standard run length: 720mm
  • Standard color of metallic parts: RAL 9005 black
  • Optional RAL color selection: up on request

Specifications

  • Maximum load capacity (projector+ceiling cover) up to 25kg
  • Maximum projector dimensions (WxHxD) ≤505x185x509mm
  • Lift dimensions (WxHxD): 796x305x509mm
  • Lift weight: 42kg
  • Ceiling hole required: 800x530mm
  • Standard run length: 720mm
  • Standard color of metallic parts: RAL 9005 black
  • Optional RAL color selection: up on request
  • Default control method: wall switch over 230VAC
  • Optional controls: RF remote control, dry contacts, RS 232 port on external control box
  • Power supply: 230VAC
