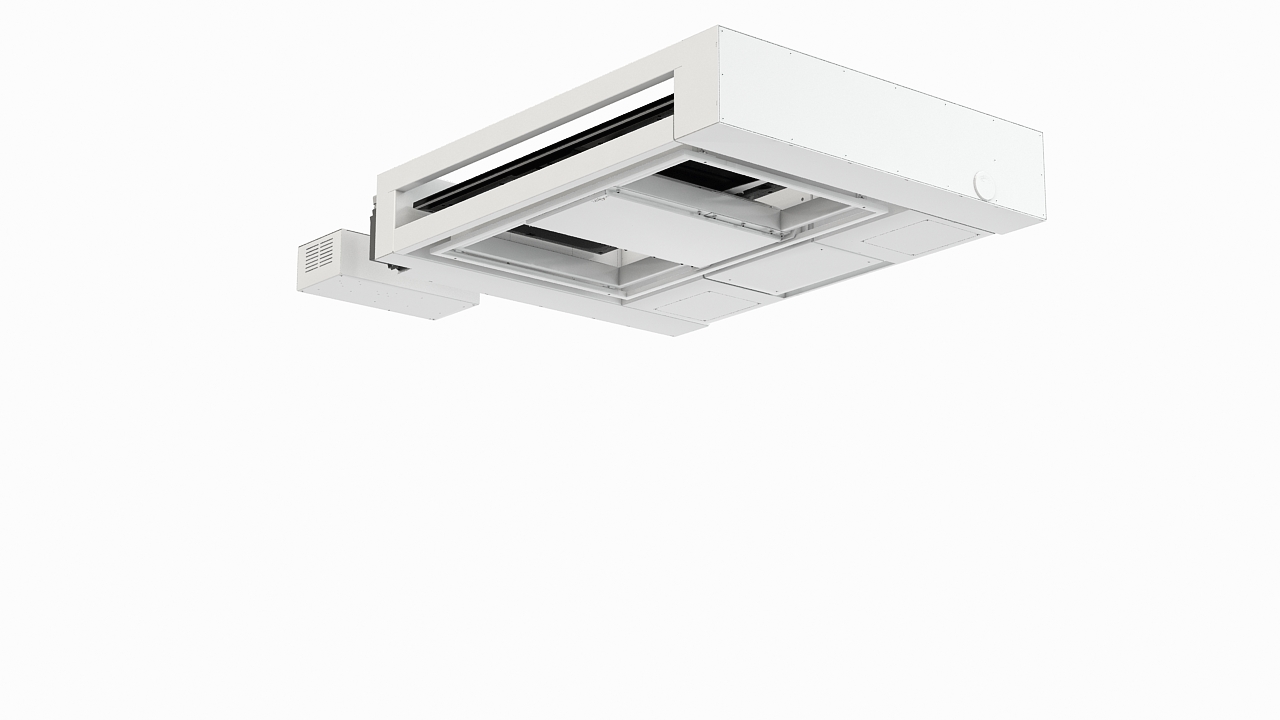

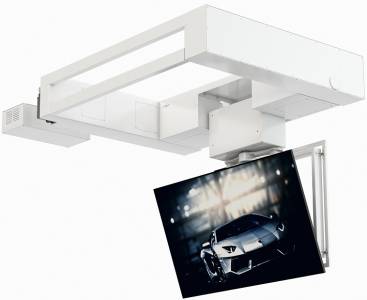

Flat Panel Ceiling Lift FPLC V2-75+R+TILT+LOCK

FPLCV2-75+R+TILT+LOCK

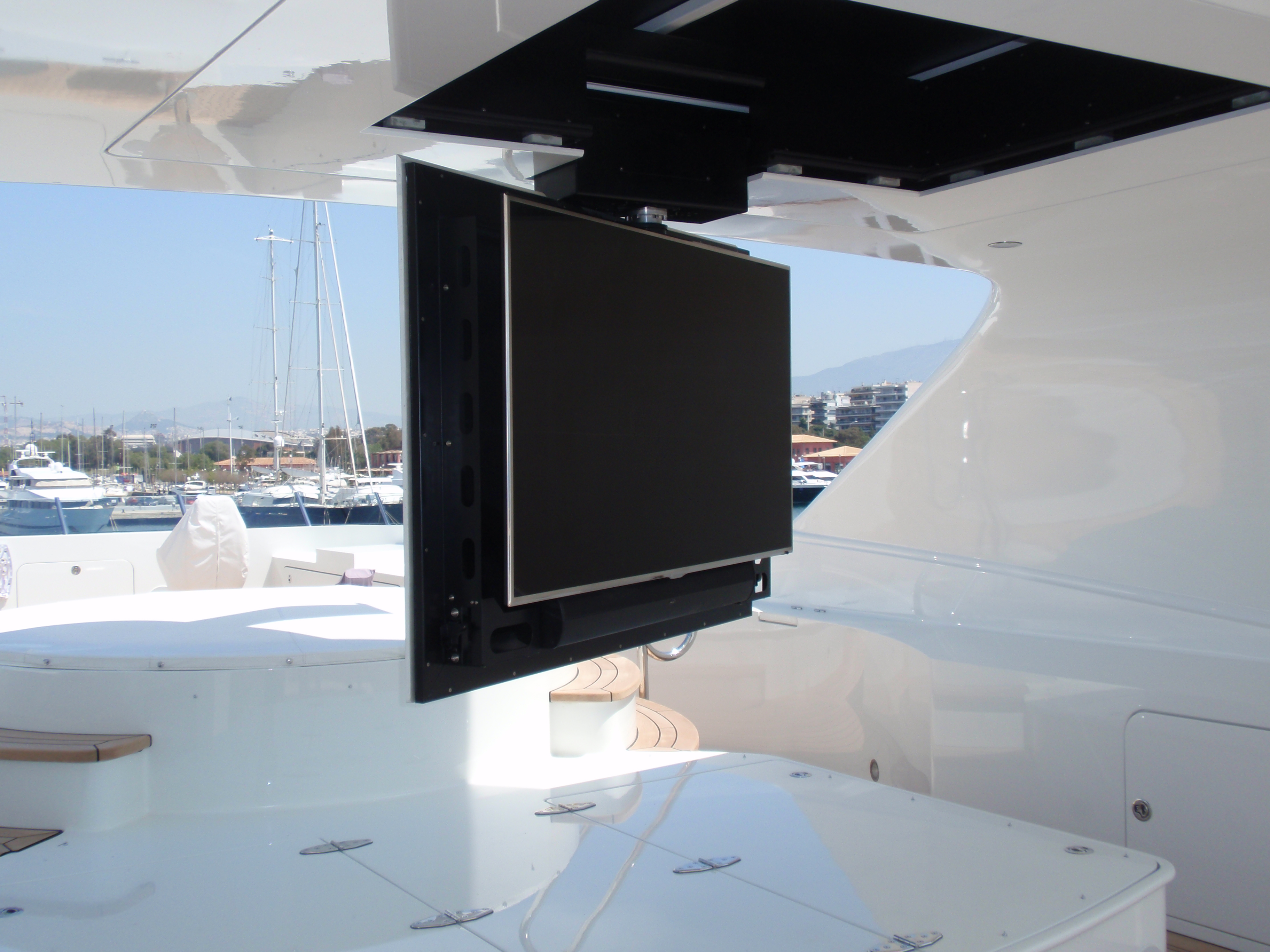

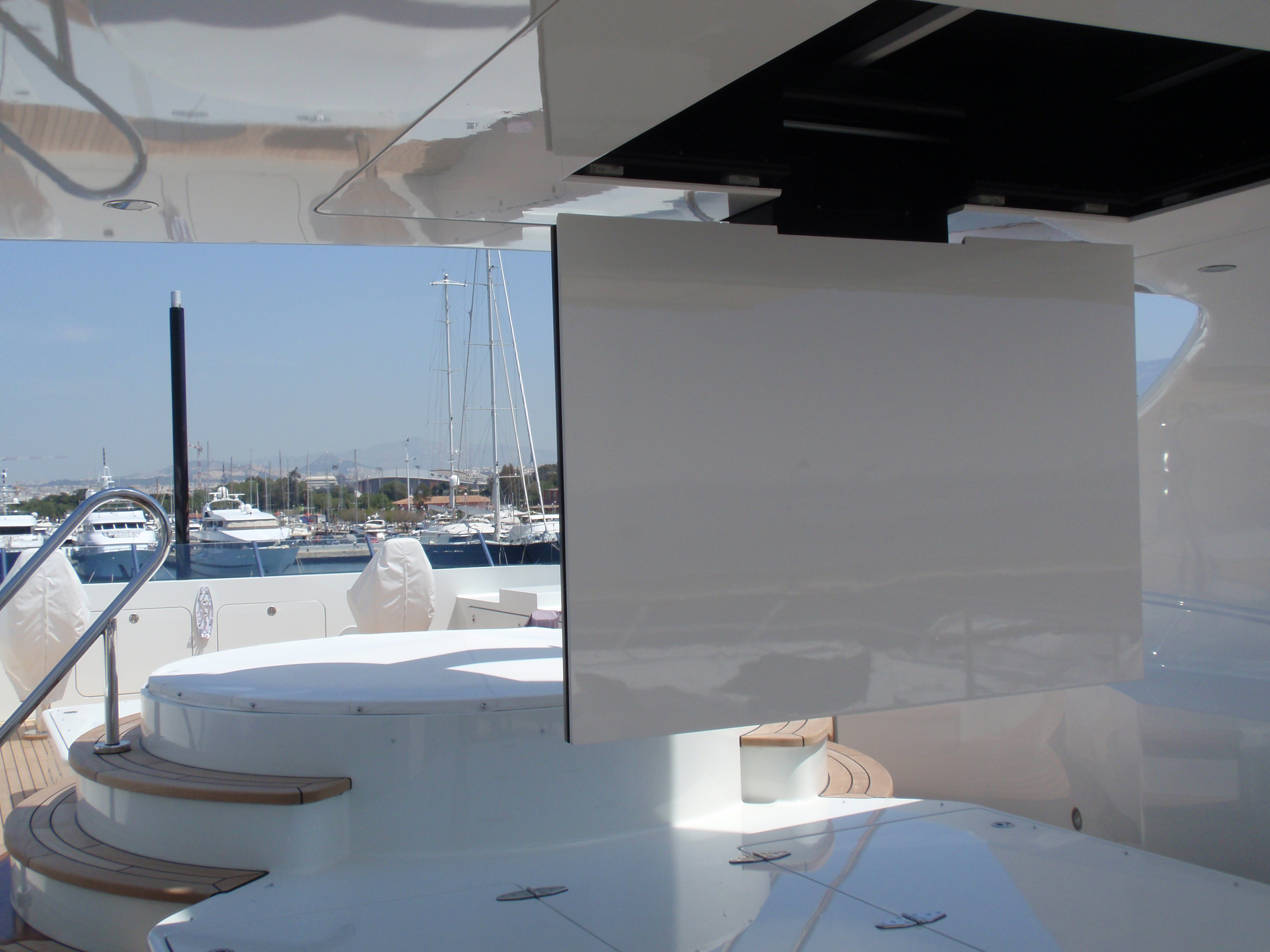

The FPLCV2+R best selling series of flat panel ceiling lifts with full rotation, can be also equipped with tilt ability, up to 25degrees! Providing maximum utility and best viewing angle for different positions, FPLCV2+R+TILT series is the optimum elegant solution!

Features

Maximum flat panel dimensions (WxHxD) ≤ 1700x1000x90mm
Maximum load
- flat panel (TV) up to 45kg
- ceiling covers up to 15kg
Lift dimensions (WxHxD): 2050x220x1625mm, excluding control box

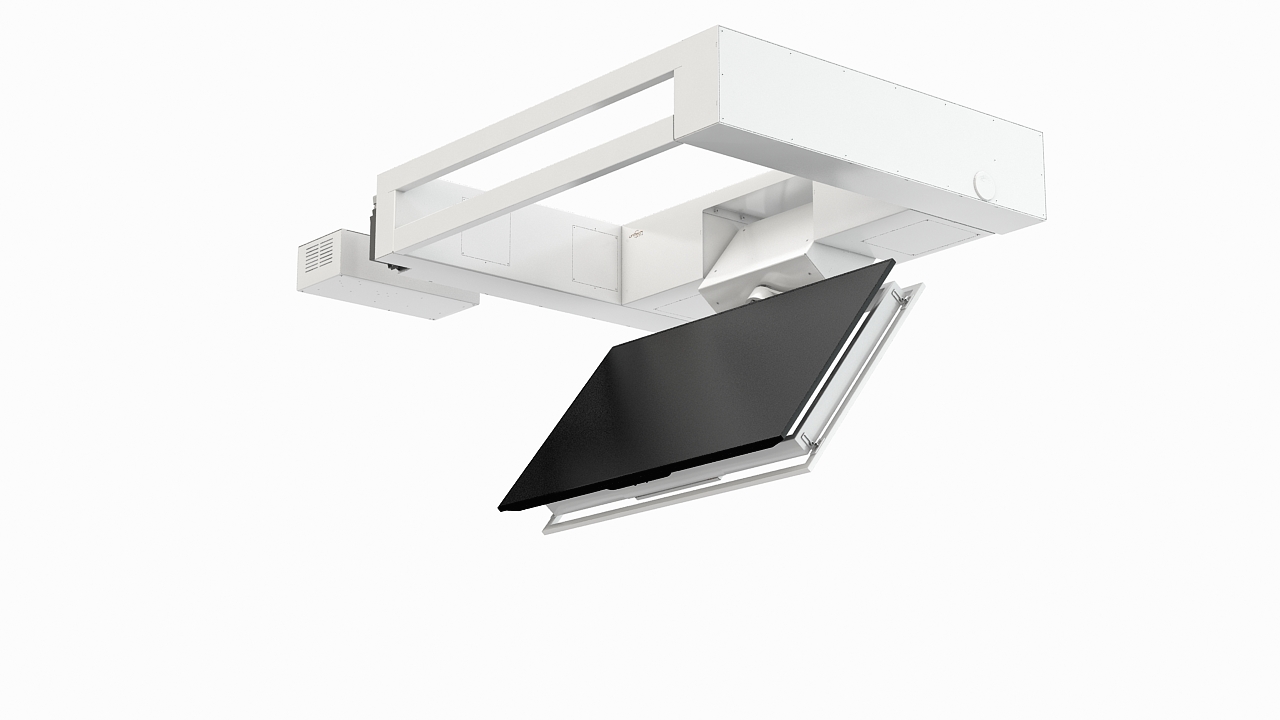

Swiveling angle: 90degrees

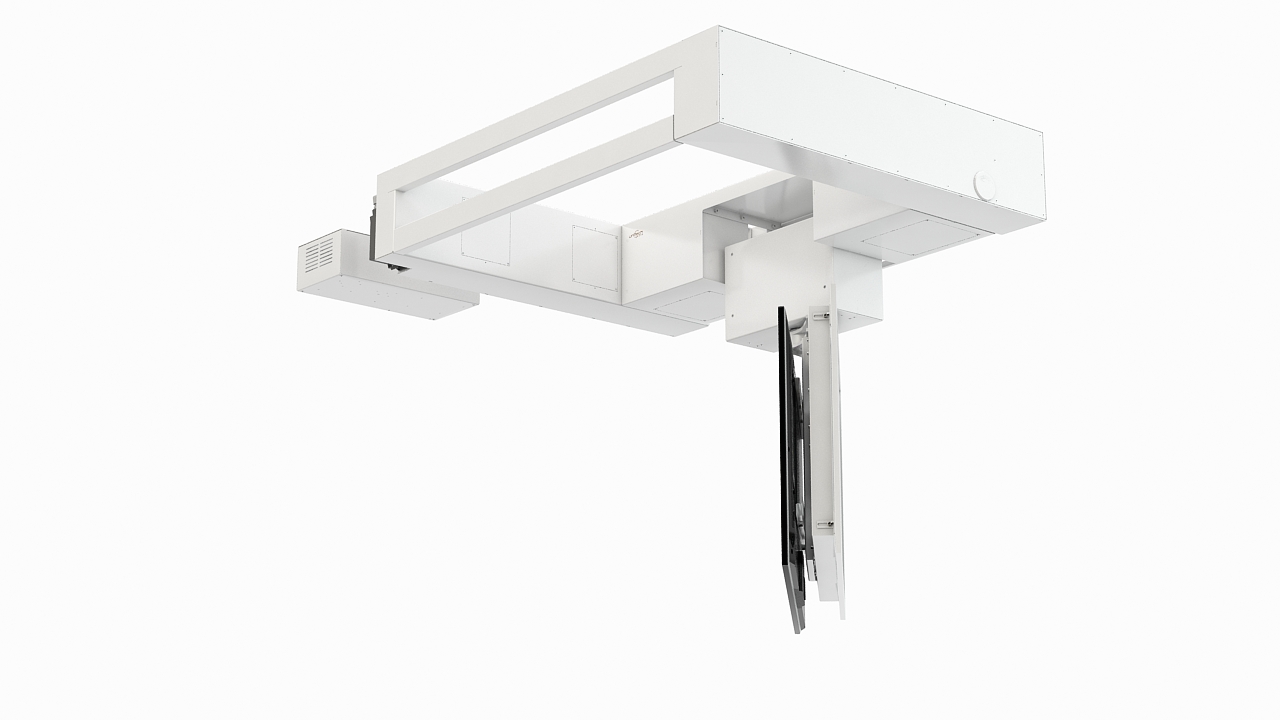

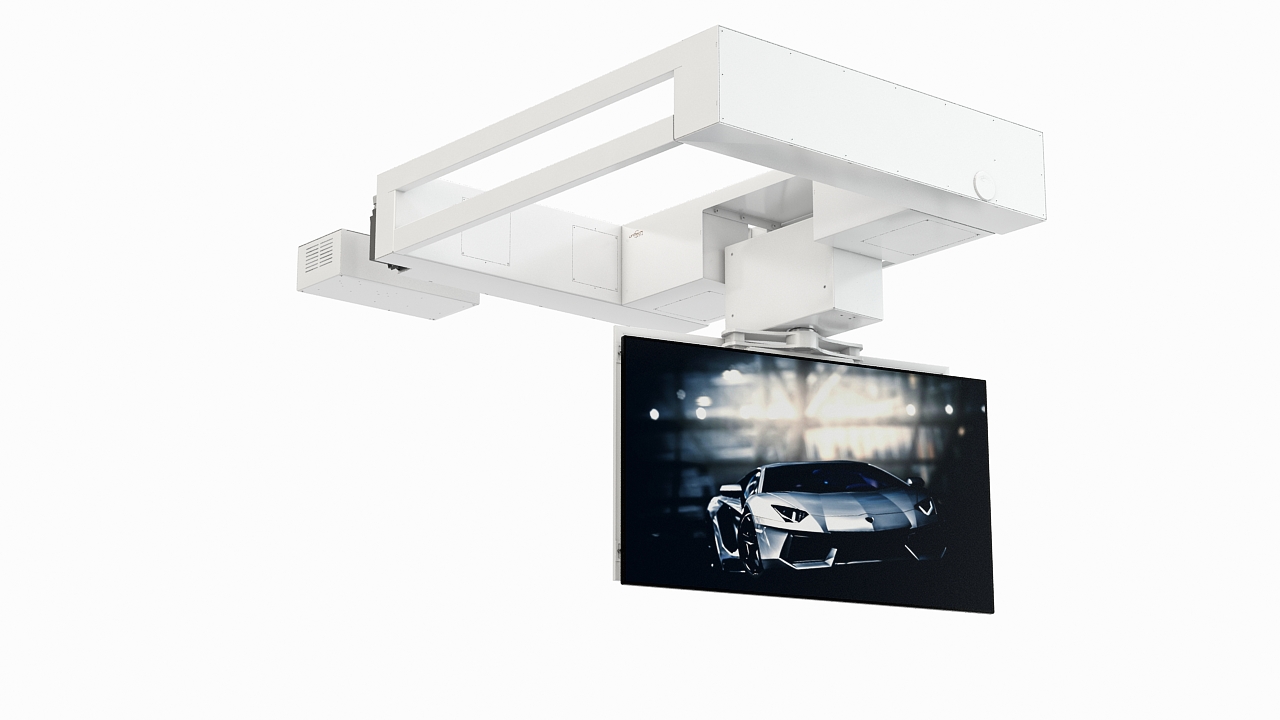

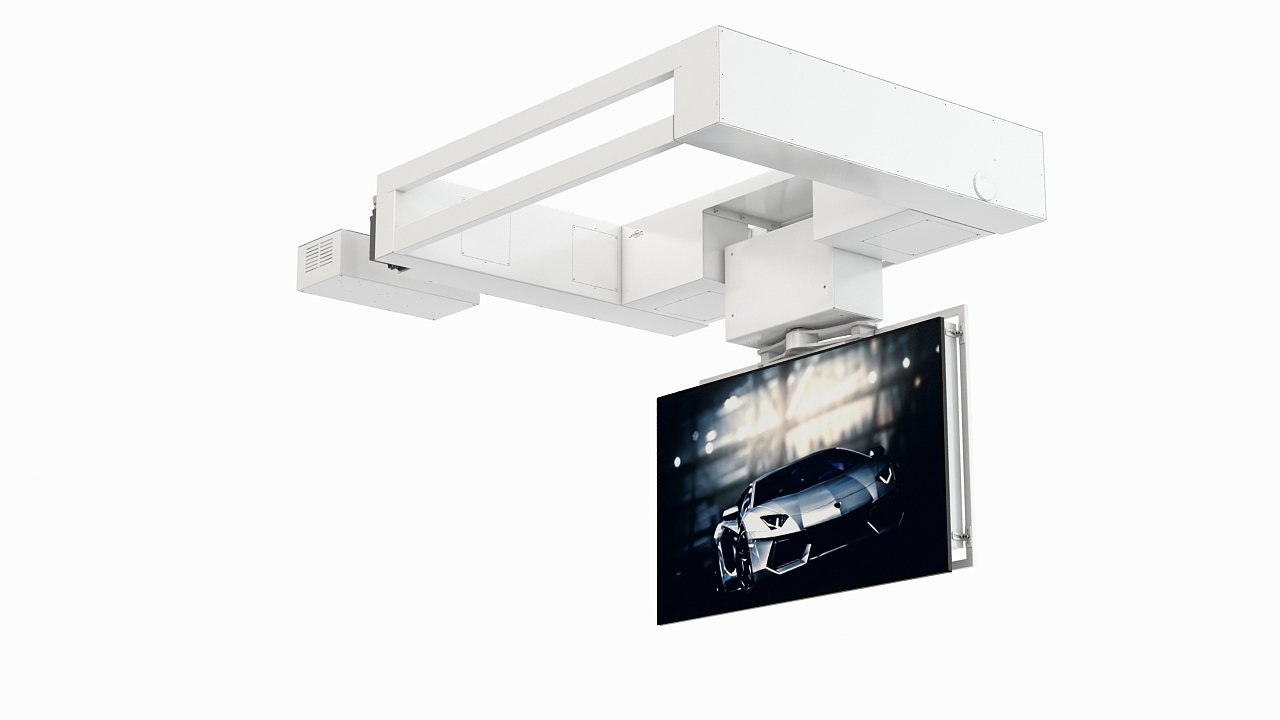

Rotation ability (CW & CCW) ±180degrees both ways : 180^o CW & 180^o CCW

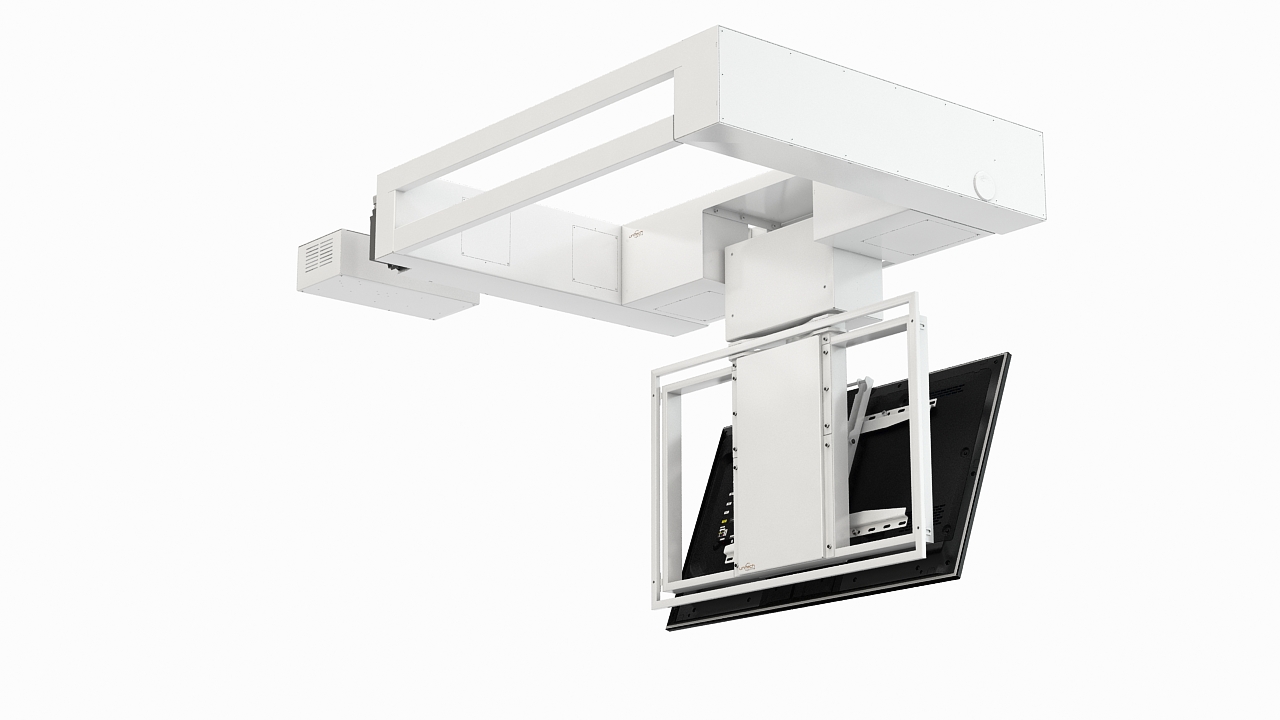

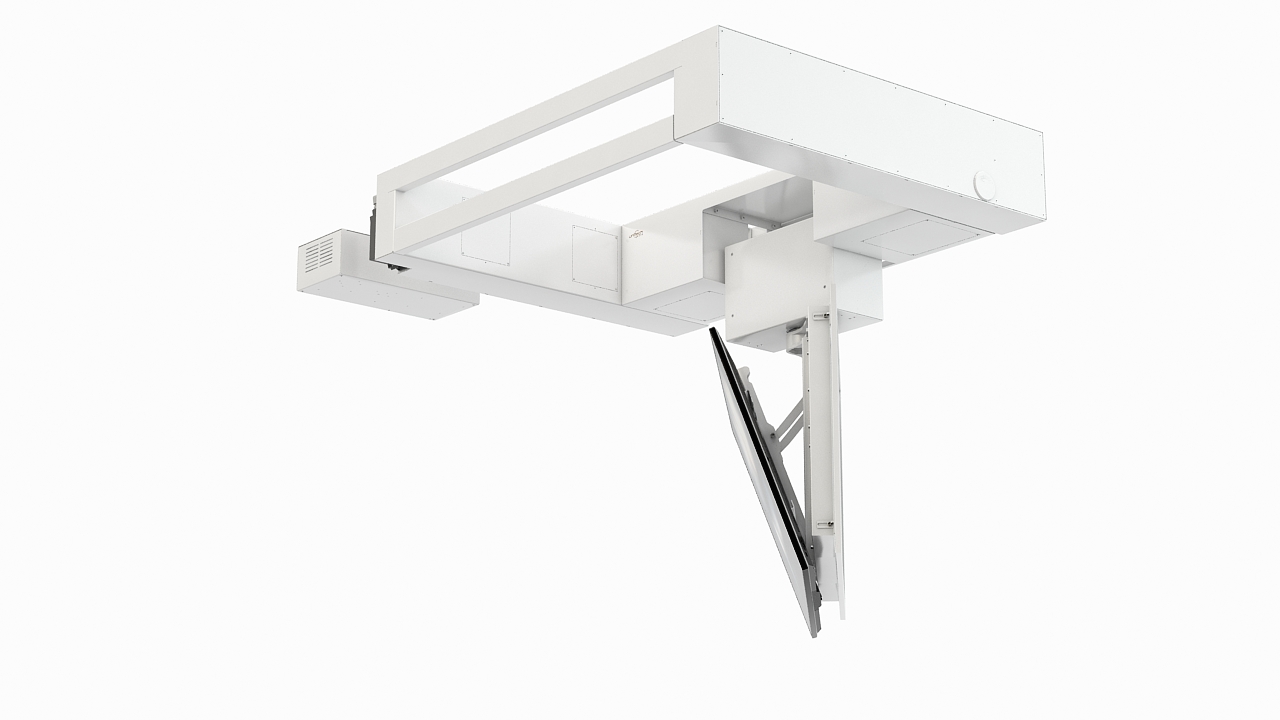

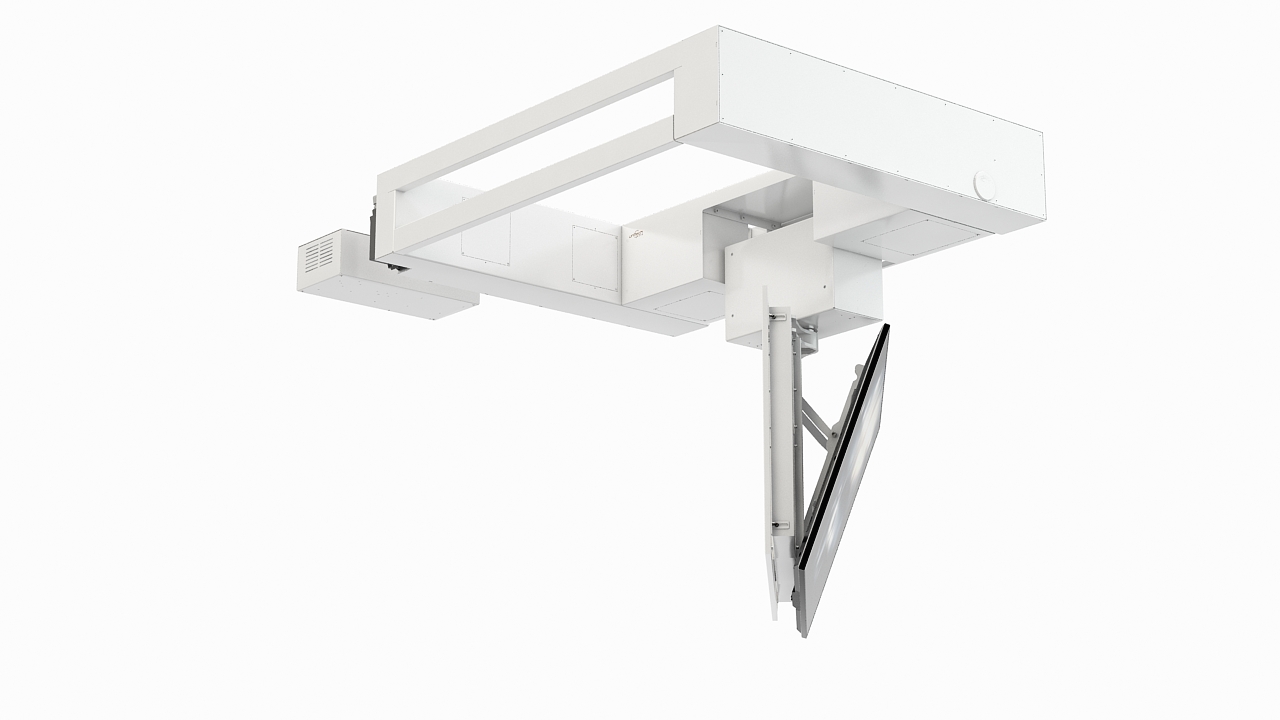

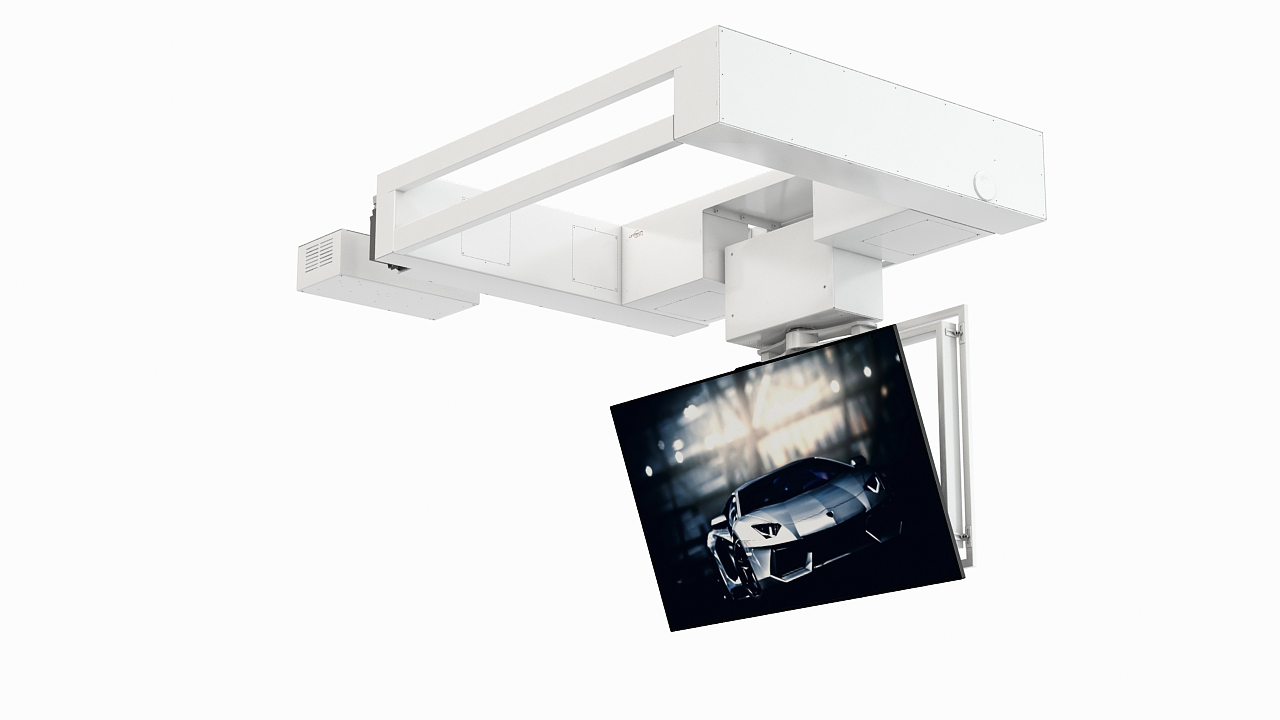

Flat panel electric tilt ability up to 25degrees, providing this is allowed by TV's structure
Mounting flat panel holes pattern up to 600x400mm
Standard color of metallic parts : powder coating in RAL 9005 black or RAL 9016 whitePower supply : 230VAC-50/60Hz

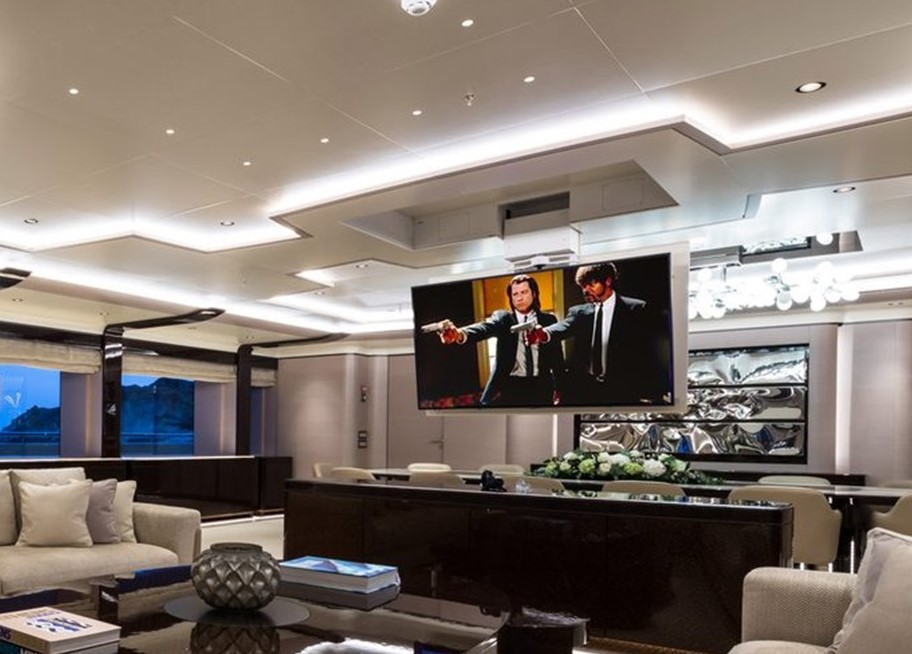

It is recommended that the net inner depth of installation false ceiling, is approximately 2cm greater than the height of the lift, in order to prevent problems from bumps on the surface of the ceiling or from crooked surfaces.

Specifications

Maximum flat panel dimensions (WxHxD) ≤ 1700x1000x90mm
Maximum load
- flat panel (TV) up to 45kg
- ceiling covers up to 15kg
Lift dimensions (WxHxD): 2050x220x1625mm, excluding control box
Swiveling angle: 90degrees
Rotation ability (CW & CCW) ±180degrees both ways : 180^o CW & 180^o CCW
Flat panel electric tilt ability up to 25degrees, providing this is allowed by TV's structure
Mounting flat panel holes pattern up to 600x400mm
Standard color of metallic parts : powder coating in RAL 9005 black or RAL 9016 whitePower supply : 230VAC-50/60Hz
Standard control option: dry contacts control box
Optional controls: RF remote control, RS 232 ports
