Flat Panel Ceiling Lift with Rotation FPLCV2SLIM52-60+R+LOCK

FPLCV2Slim52-60+R+LOCK

FPLC V2 Slim+R series of flat panel ceiling lift mechanisms completes the series of elegant and slim ceiling mechanism with new models that comprise rotation ability and excellent utility!   The model suitable for screens up to 65" provices maximum utility and safety, with the safety locking system in closed position.    FPLC V2 Slim+R  models provide swiveling at 90 degrees from ceiling and rotation ability up to ±180degrees (full rotation to both directions)! Model: FPLCV2SLIM52-60+R+LOCK

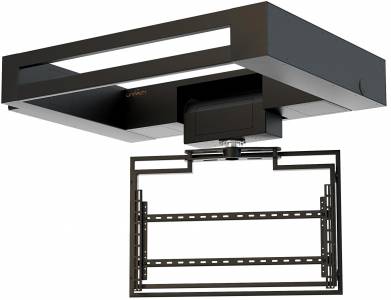

Fplcv2Slim52 60 R Lock Main Image
Fplcv2Slim52 60 R Lock Main Image

Features

  • Maximum flat panel dimensions (WxHxD) ≤ 1480x900x90mm
  • Maximum load (flat panel+ceiling cover)   35kg
  • Lift dimensions (WxHxD) 1820x220x1525mm (excluding control box)
  • Maximum swiveling angle 90degrees
  • Rotation ability (CW & CCW) +/-180degrees both ways : 180o CW & 180o CCW
  • Mounting flat panel holes pattern up to 800x600mm
  • Locking system in closed position for maximum safety of application
  • Standard color of metallic parts: powder coating in RAL 9005 black or RAL 9016 white

It is recommended that the net inner depth of installation false ceiling, is approximately 2cm greater than the height of the lift, in order to prevent problems from bumps on the surface of the ceiling or from crooked surfaces.

Specifications

  • Maximum flat panel dimensions (WxHxD) ≤ 1480x900x90mm
  • Maximum load (flat panel+ceiling cover)   35kg
  • Lift dimensions (WxHxD) 1820x220x1525mm (excluding control box)
  • Maximum swiveling angle 90degrees
  • Rotation ability (CW & CCW) +/-180degrees both ways : 180o CW & 180o CCW
  • Mounting flat panel holes pattern up to 800x600mm
  • Locking system in closed position for maximum safety of application
  • Standard color of metallic parts: powder coating in RAL 9005 black or RAL 9016 white
  • Power supply : 110-230VAC-50/60Hz
  • Standard control option: dry contacts control box
  • Optional controls: RF remote control, RS 232 ports

It is recommended that the net inner depth of installation false ceiling, is approximately 2cm greater than the height of the lift, in order to prevent problems from bumps on the surface of the ceiling or from crooked surfaces.
