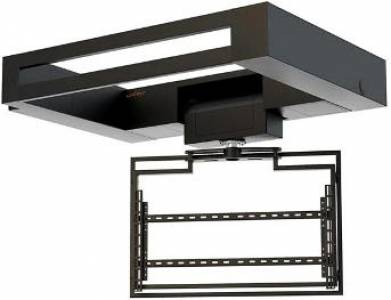

Flat Panel Ceiling Lift with Rotation FPLCV2SLIM42-50+R

FPLCV2Slim42-50+R

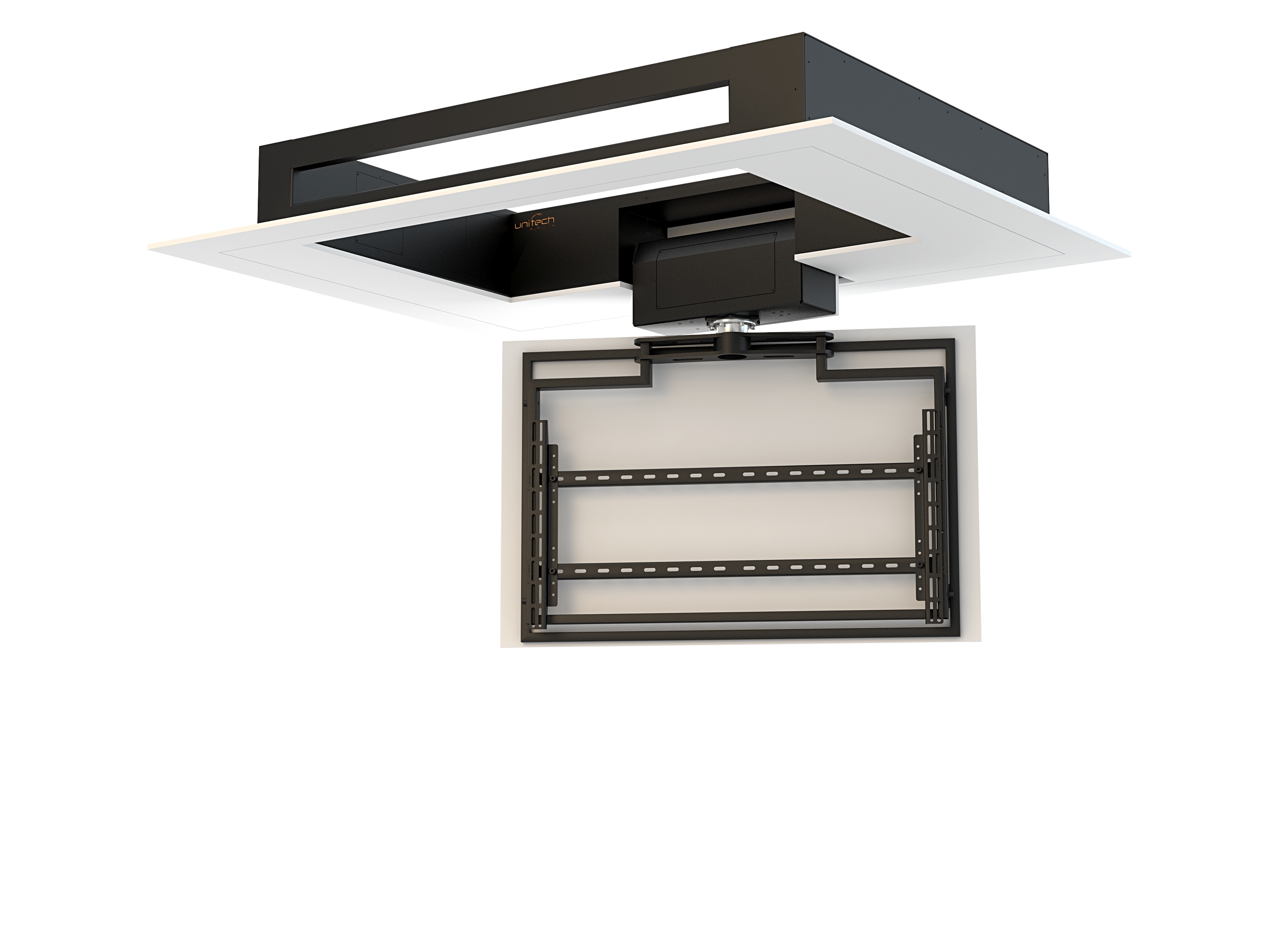

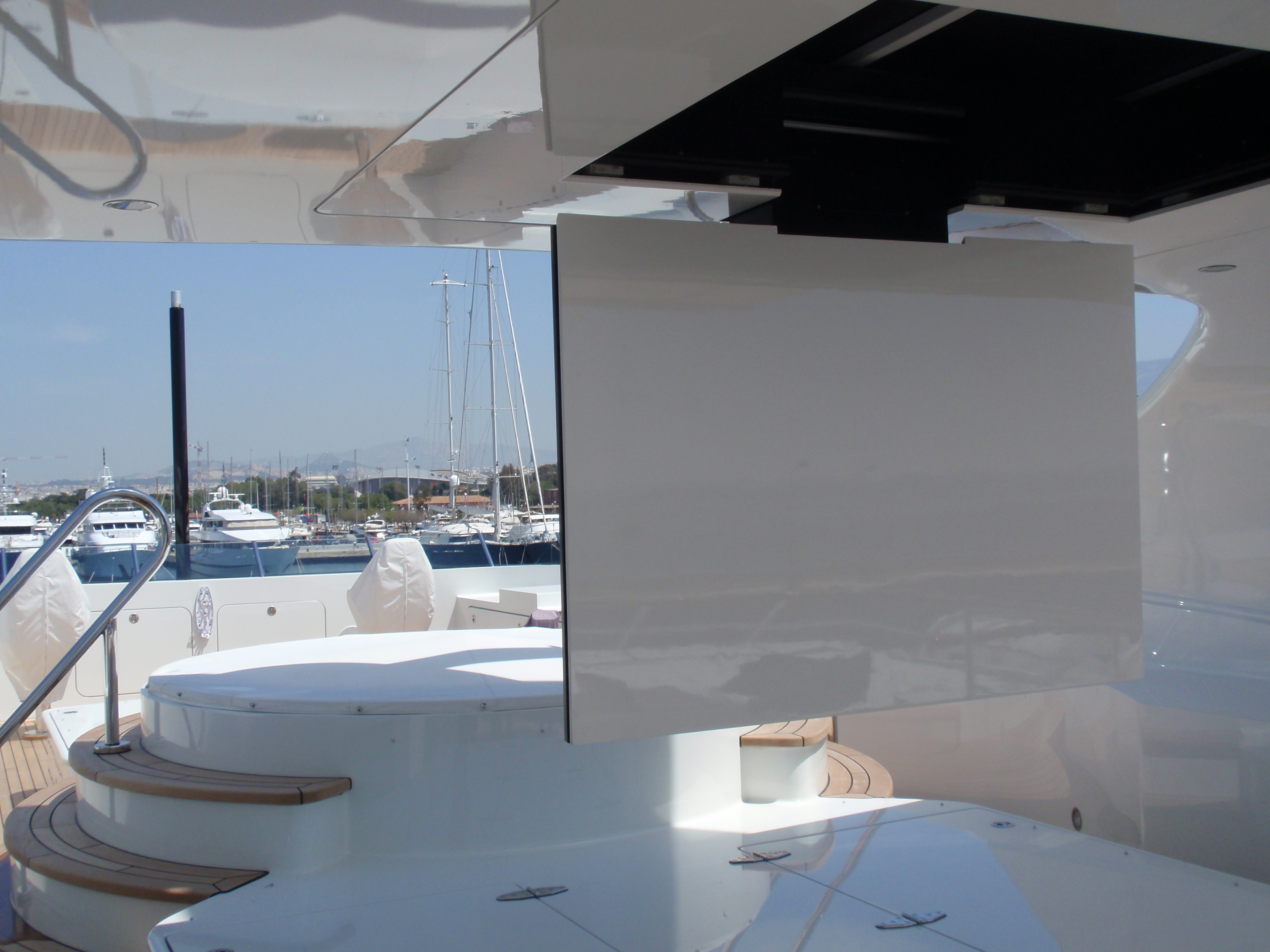

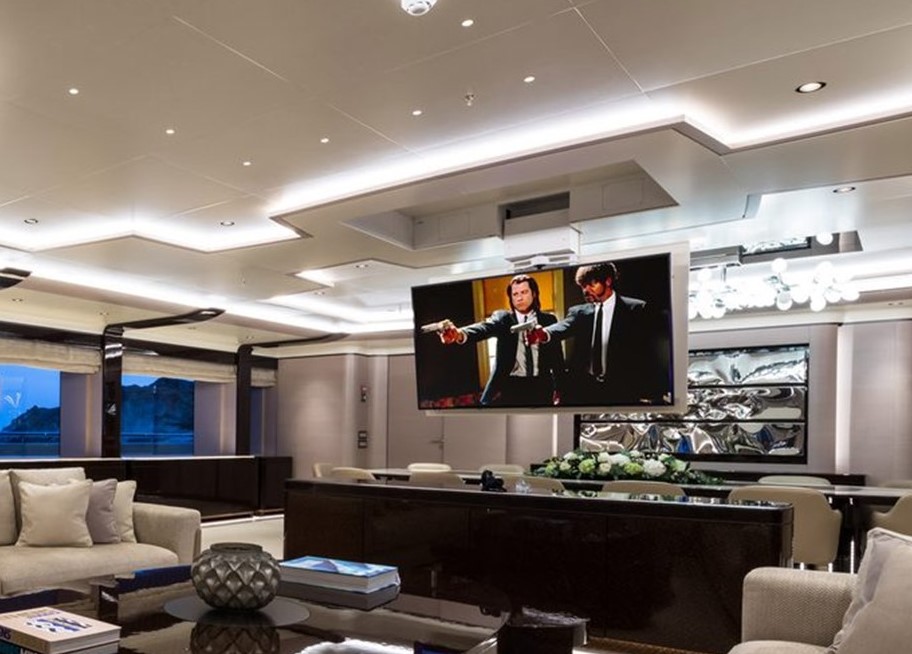

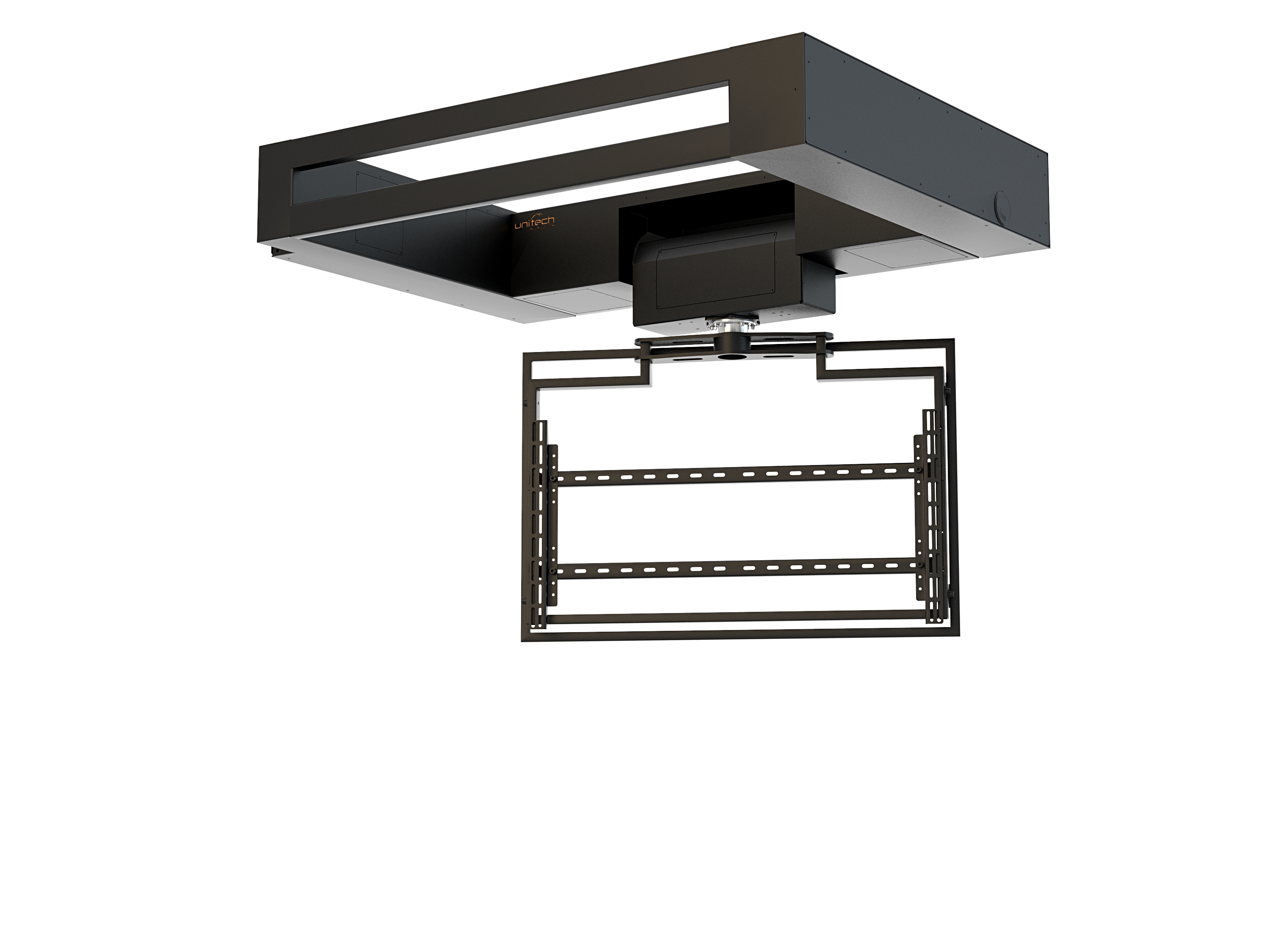

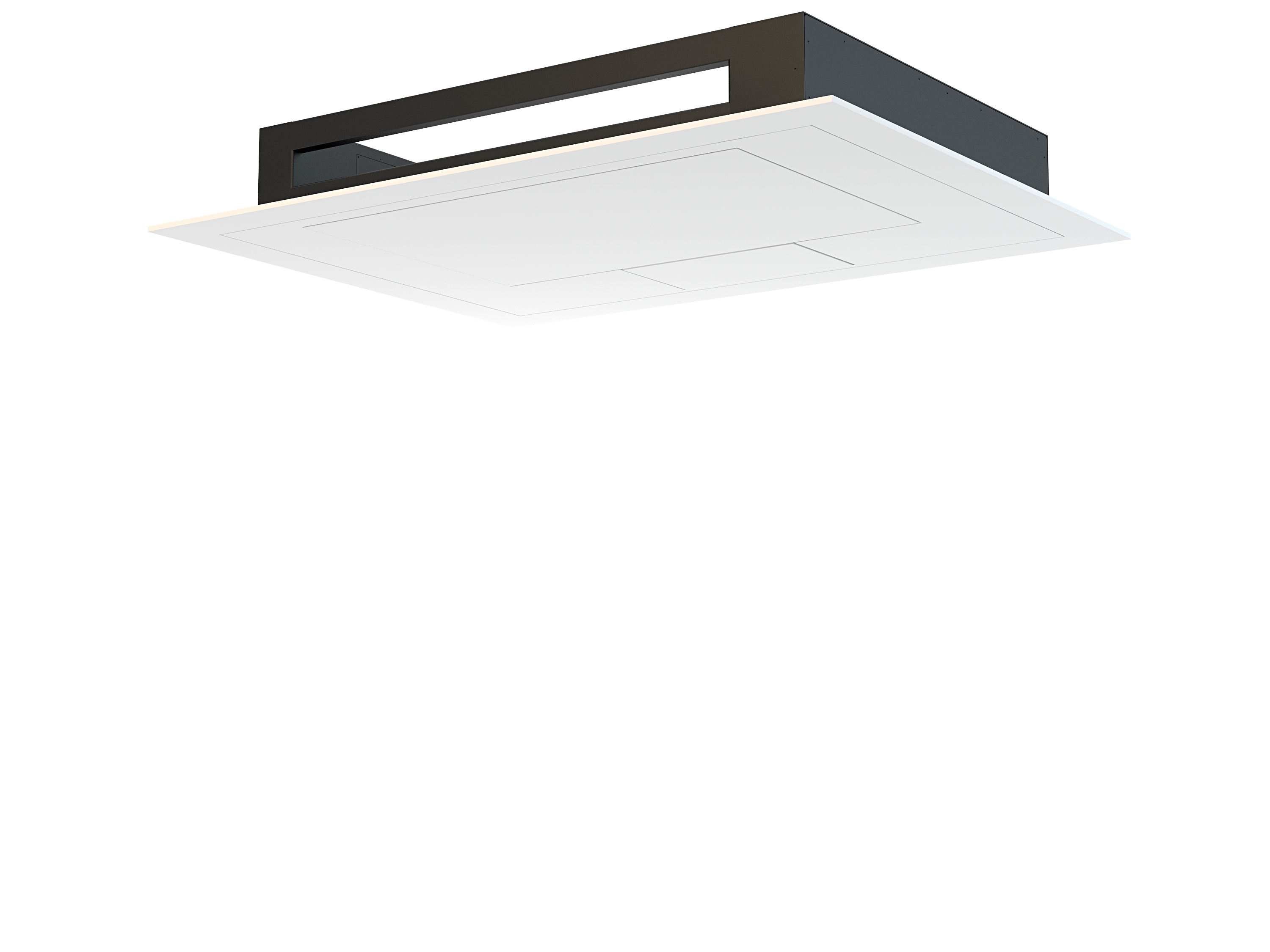

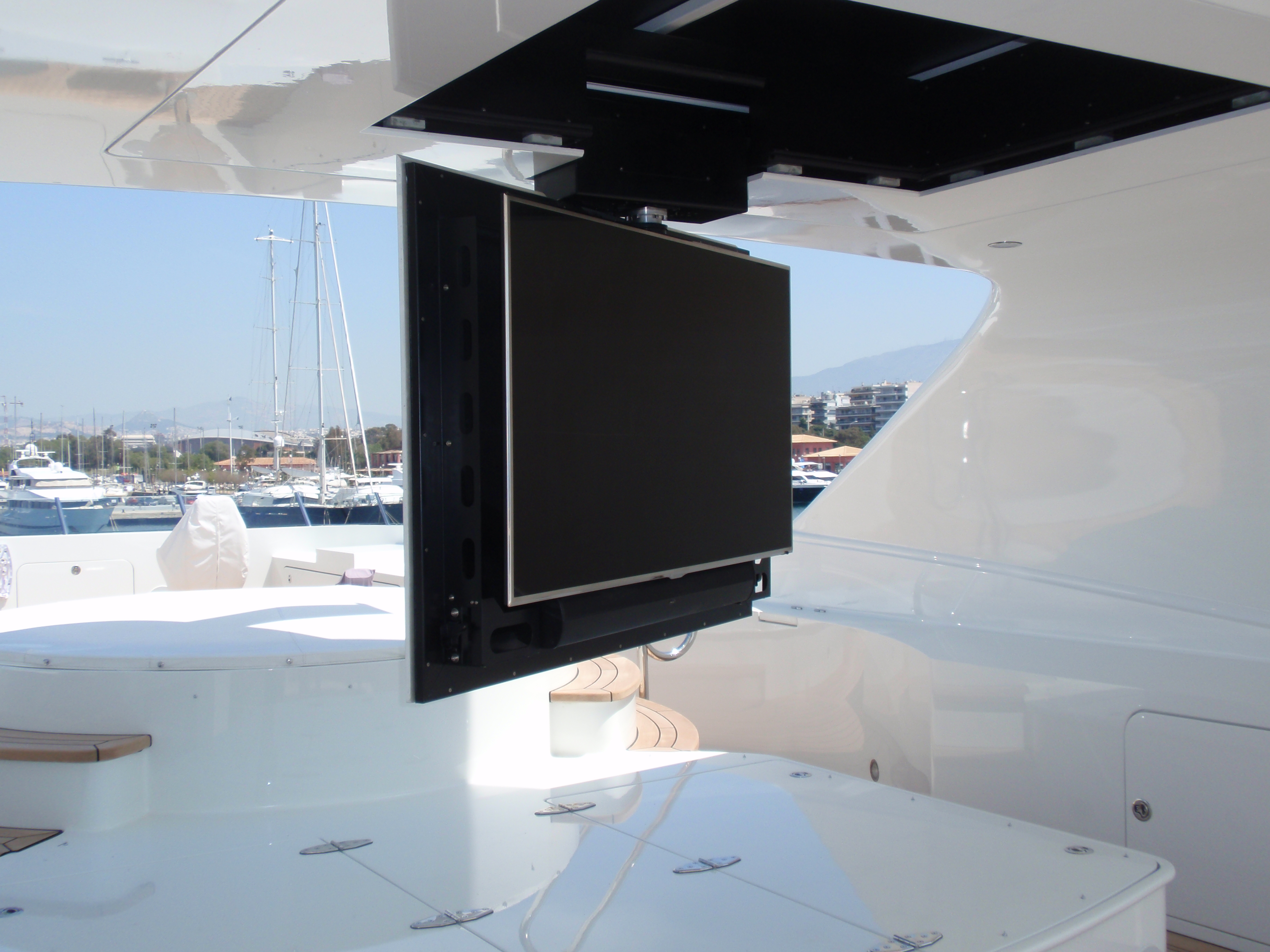

FPLC V2 Slim+R series of flat panel ceiling lift mechanisms completes the series of elegant and slim ceiling mechanism with new models that comprise rotation ability and excellent utility! Giving ideal solutions in most demanding applications of reduced space, (e.g. marine or vessel applications), FPLC V2 Slim+R series impress both users and integrators! FPLC V2 Slim+R models provide swiveling at 90 degrees from ceiling and rotation ability up to ±180degrees (full rotation to both directions)! Model: FPLCV2SLIM42-50+R

Features

Maximum flat panel dimensions (WxHxD) ≤ 1280x755x90mm
Maximum load (flat panel+ceiling cover) 30kg
Lift dimensions (WxHxD) 1615x220x1300mm (excluding control box)
Maximum swiveling angle 90degrees
Rotation ability (CW & CCW) +/-180degrees both ways : 180^o CW & 180^o CCW
Mounting flat panel holes pattern up to 800x400mm
Standard color of metallic parts: powder coating in RAL 9005 black or RAL 9016 white

It is recommended that the net inner depth of installation false ceiling, is approximately 2cm greater than the height of the lift, in order to prevent problems from bumps on the surface of the ceiling or from crooked surfaces.

Specifications

Maximum flat panel dimensions (WxHxD) ≤ 1280x755x90mm
Maximum load (flat panel+ceiling cover) 30kg
Lift dimensions (WxHxD) 1615x220x1300mm (excluding control box)
Maximum swiveling angle 90degrees
Rotation ability (CW & CCW) +/-180degrees both ways : 180^o CW & 180^o CCW
Mounting flat panel holes pattern up to 800x400mm
Standard color of metallic parts: powder coating in RAL 9005 black or RAL 9016 white
Power supply : 110-230VAC-50/60Hz
Standard control option: dry contacts control box
Optional controls: RF remote control, RS 232 ports
