FPLC V2-75

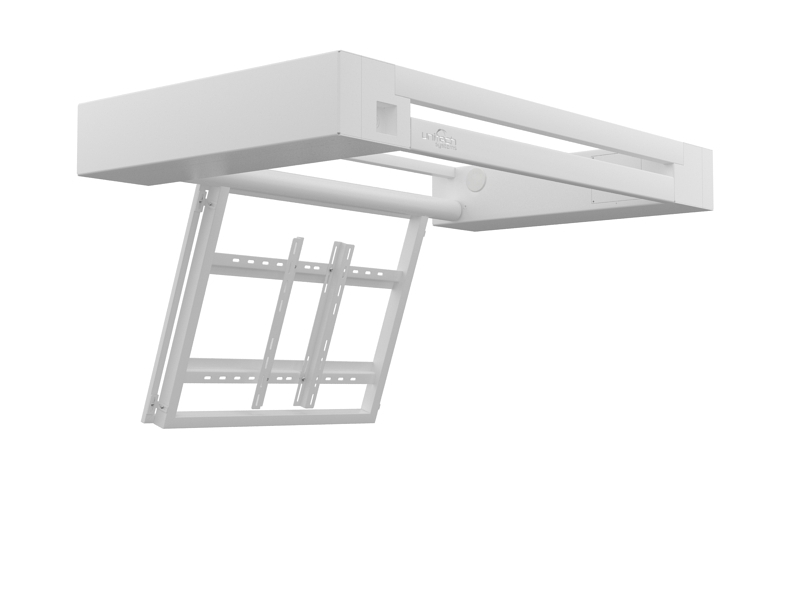

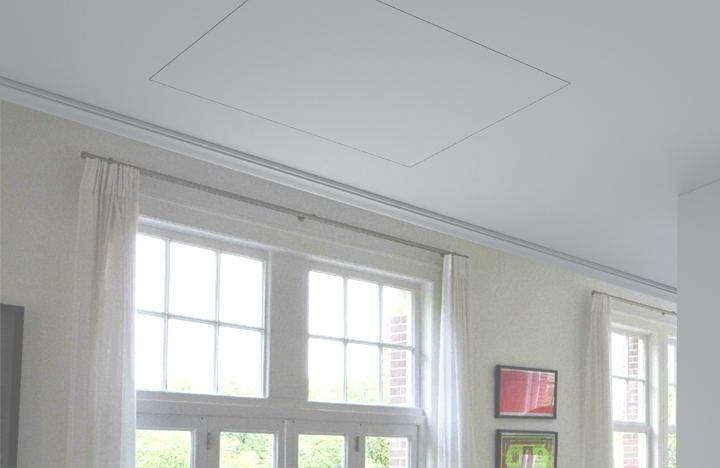

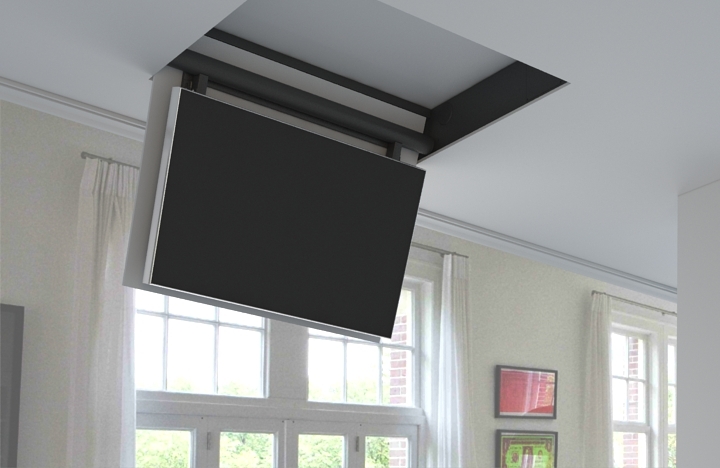

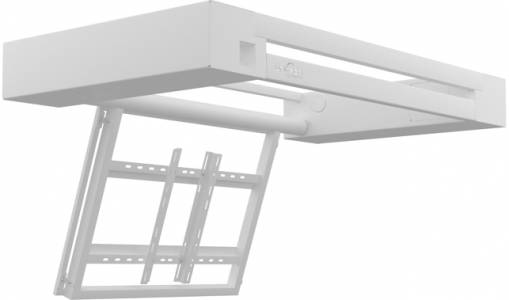

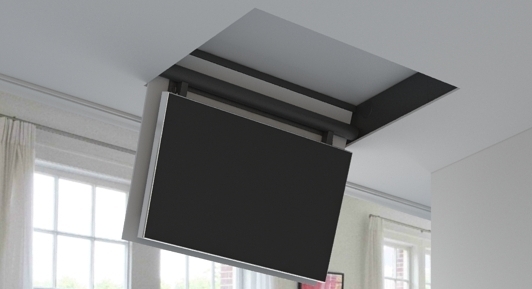

FPLC V2-75 model of flat panel ceiling lift mechanisms for extra large TV sizes ~75”. Elegant and silent, this heavy duty series of lifts provides safety and utility, while concealing large TV sets inside ceiling structure . FPLC V2 series with simple swiveling at 100 degrees from ceiling and minimum ceiling depth required at 220mm, is also equipped with safety locking system in closed position.
Model: FPLC V2-75
- Maximum flat panel dimensions (WxHxD) ≤ 1700x1000x120mm
- Maximum load (flat panel+ceiling cover): 65kg
- Lift dimensions (WxHxD): 2050x220x1420mm, excluding control box
- Swiveling angle: 100degrees
- Safety locking system in closed position for maximum safety in application
- Standard color of metallic parts : powder coating in RAL 9005 black or RAL 9016 white
It is recommended that the net inner depth of installation false ceiling, is approximately 2cm greater than the height of the lift, in order to prevent problems from bumps on the surface of the ceiling or from crooked surfaces.
Model: FPLC V2-75
- Maximum flat panel dimensions (WxHxD) ≤ 1700x1000x120mm
- Maximum load (flat panel+ceiling cover): 65kg
- Lift dimensions (WxHxD): 2050x220x1420mm, excluding control box
- Swiveling angle: 100degrees
- Safety locking system in closed position for maximum safety in application
- Standard color of metallic parts : powder coating in RAL 9005 black or RAL 9016 white
- Power supply : 110-230VAC-50/60Hz
- Standard control option: dry contacts control box
- Optional controls: RF remote control, RS 232 ports
It is recommended that the net inner depth of installation false ceiling, is approximately 2cm greater than the height of the lift, in order to prevent problems from bumps on the surface of the ceiling or from crooked surfaces.
