Flat Panel Ceiling Lift FPLC V4-52

FPLC V4-52

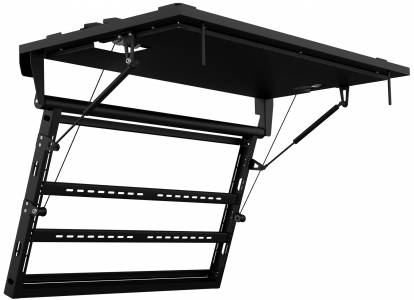

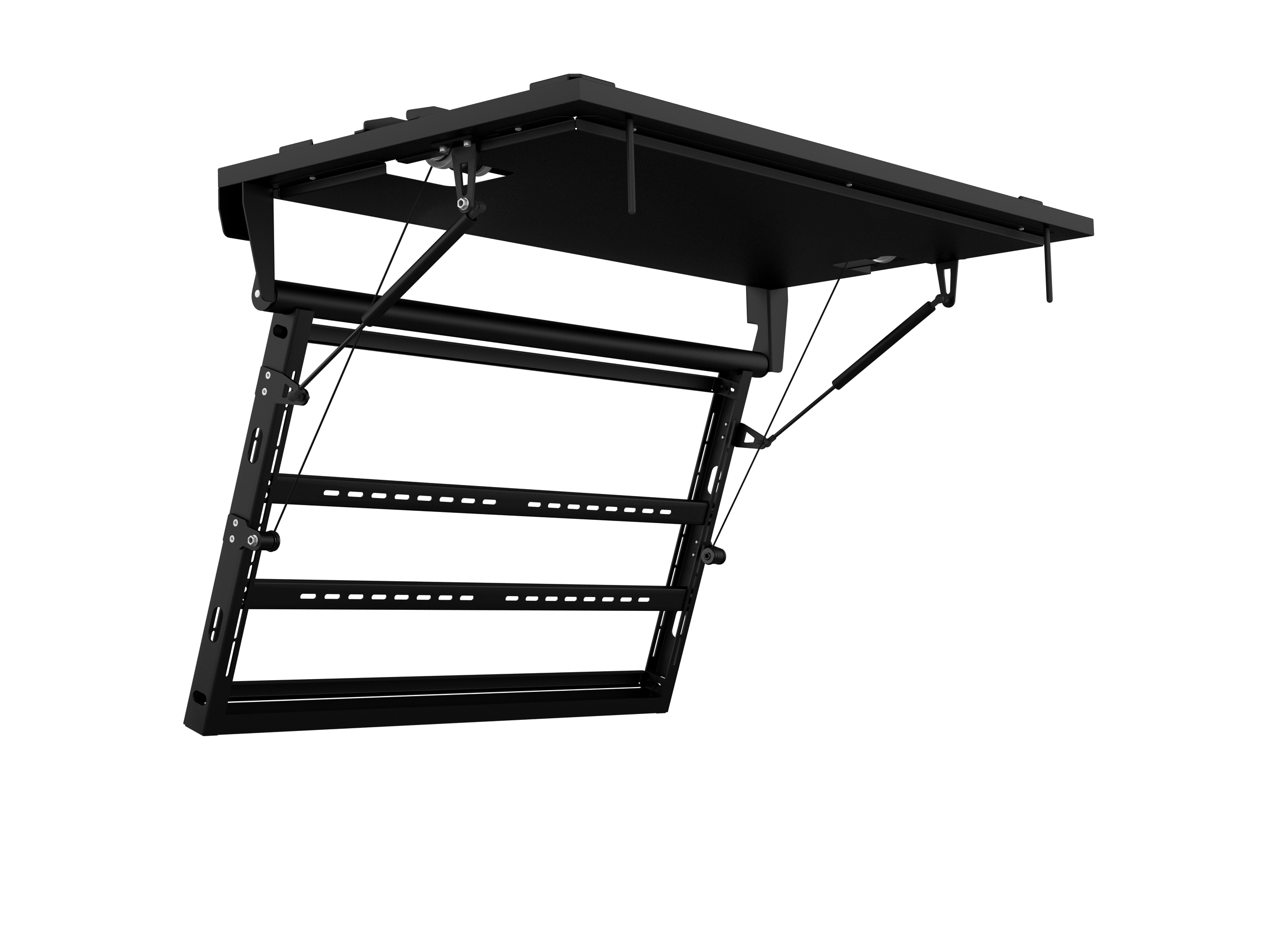

Flat panel ceiling lift, type FPLC V4-52, with maximum opening angle at 110o. When the lift is in closed position, the flat panel faces upwards.

Fplc V4 52 Main Image
Fplc V4 52 Main Image

Features

  • suitable for panels with max. dimensions 1250x750x90mm
  • suitable for panels with vesa mounting up to 800x400mm
  • lift dimensions 1525x870x240mm
  • maximum load capacity up to 45kg
  • lift weight ~65kg
  • maximum opening angle at 110o
  • when closed, panel faces upwards
  • powder coat coloring of metallic parts in black RAL9005 or white RAL9016
  • cable management system included

Specifications

  • suitable for panels with max. dimensions 1250x750x90mm
  • suitable for panels with vesa mounting up to 800x400mm
  • lift dimensions 1525x870x240mm
  • maximum load capacity up to 45kg
  • lift weight ~65kg
  • maximum opening angle at 110o
  • when closed, panel faces upwards
  • powder coat coloring of metallic parts in black RAL9005 or white RAL9016
  • cable management system included
  • standard control method wall switch over 230VAC
  • optional controls: RF remote control, dry contacts, RS 232 control board ports (each one alternative to the other)

Manuals

Only for Registered Users
