Flat Panel Ceiling Lift FPLC V4-32

FPLC V4-32

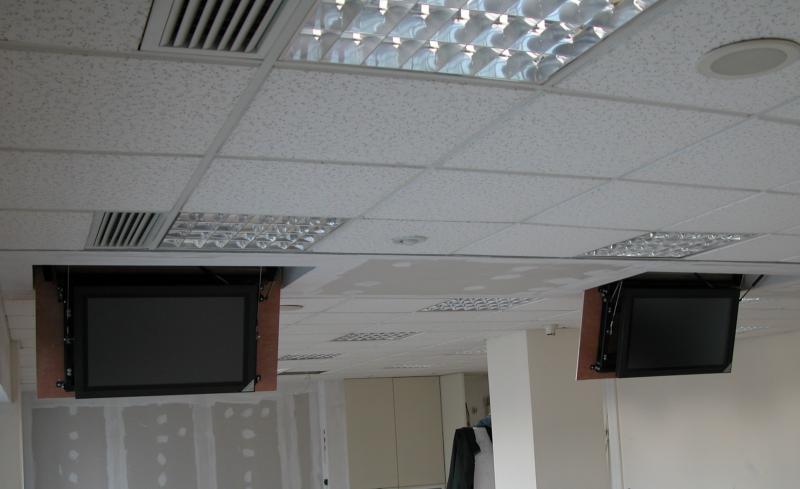

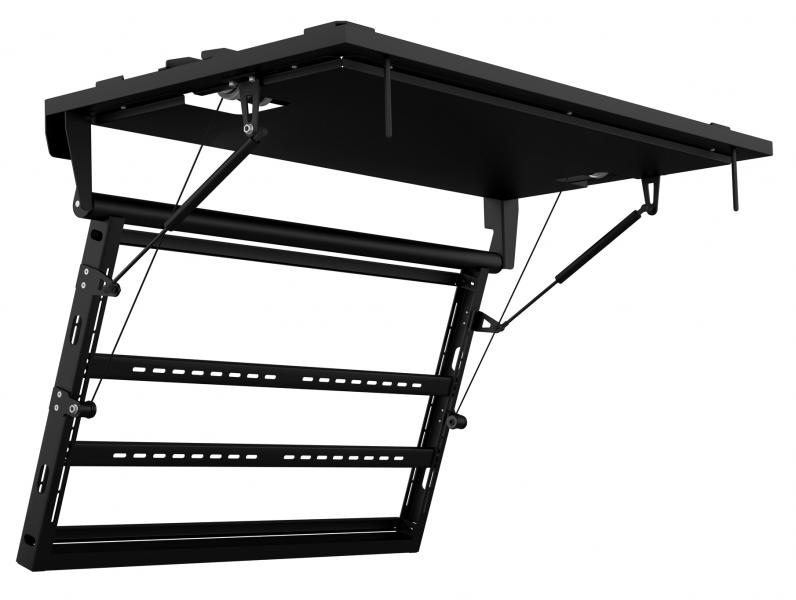

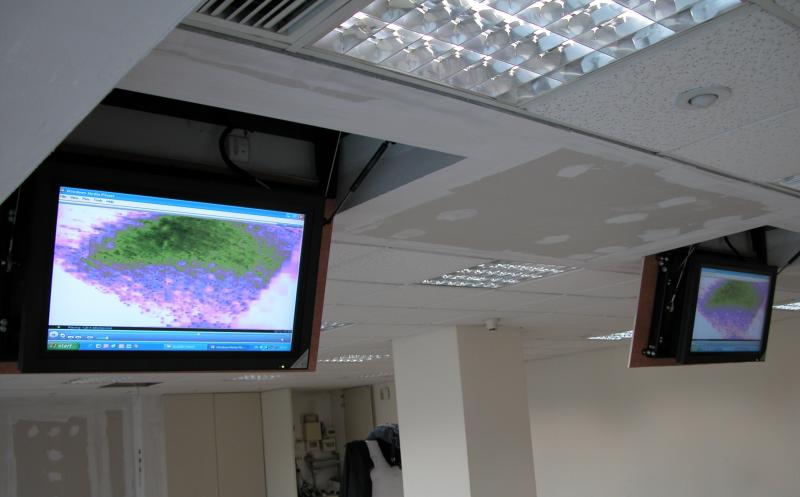

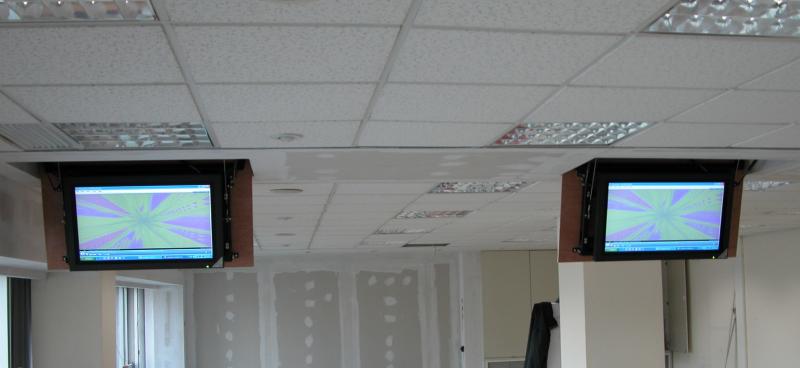

Flat panel ceiling lift, type FPLC V4-32, with maximum opening angle at 110o. When the lift is in closed position, the flat panel faces upwards.

Fplc V4 32 Main Image
Fplc V4 32 Main Image

Features

  • suitable for panels with max. dimensions 823x450x90mm
  • suitable for panels with vesa mounting up to 600x300mm
  • lift dimensions 1100x570x240mm
  • maximum load capacity up to 35kg
  • lift weight 36kg
  • maximum opening angle at 110o

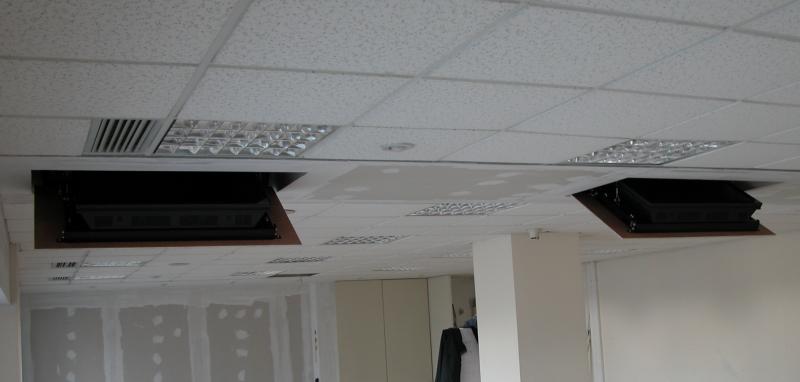

  • when closed, panel faces upwards
  • Cable management system included
  • powder coat coloring of metallic parts in black RAL9005 or white RAL9016

Specifications

  • suitable for panels with max. dimensions 823x450x90mm
  • suitable for panels with vesa mounting up to 600x300mm
  • lift dimensions 1100x570x240mm
  • maximum load capacity up to 35kg
  • lift weight 36kg
  • maximum opening angle at 110o
  • when closed, panel faces upwards
  • Cable management system included
  • powder coat coloring of metallic parts in black RAL9005 or white RAL9016
  • Standard control method wall switch over 230VAC
  • Optional controls: RF remote control,dry contacts, RS 232 control board ports (each one alternative to the other)
