Flat Panel Ceiling Lift FPLC V3-800U

FPLC V3-800U

Flat panel ceiling lift, type FPLC V3-800U, with flat panel vertical motion by 800mm. When the lift is in closed position, the flat panel faces upwards.

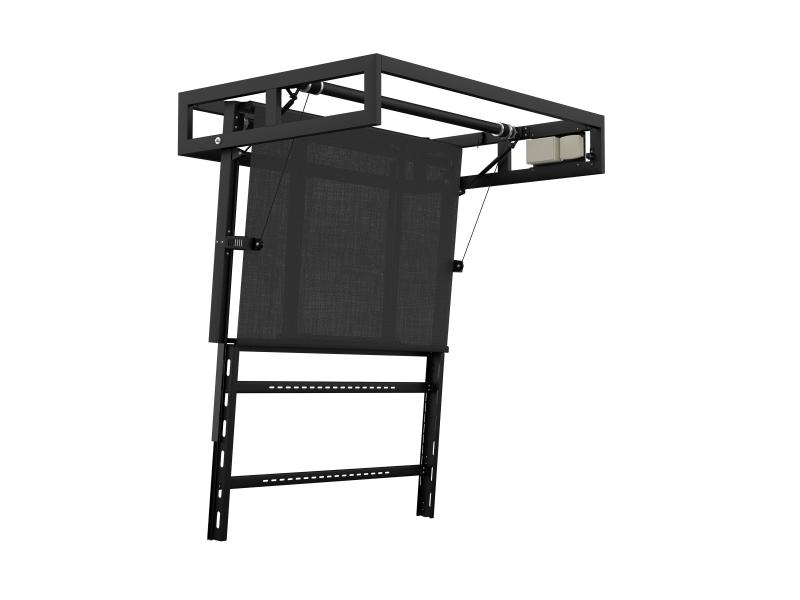

Fplc V3 800U Main Image
Fplc V3 800U Main Image

Features

  • suitable for panels with max. dimensions 1310x790x105mm
  • vertical run length up to 800mm
  • lift dimensions (WxHxD)  1615x275x1100mm
  • maximum load capacity (TV+ceiling cover) up to 45kg
  • lift weight 75kg
  • maximum opening angle by 95o
  • maximum vesa 800x600mm
  • when closed, panel faces upwards
  • powder coat coloring of metallic parts in black RAL9005 or white RAL9016

It is recommended that the net inner depth of installation false ceiling, is approximately 1-2cm greater than the height of the lift, in order to prevent problems from bumps on the surface of the ceiling or from crooked surfaces.

Specifications

  • suitable for panels with max. dimensions 1310x790x105mm
  • vertical run length up to 800mm
  • lift dimensions (WxHxD)  1615x275x1100mm
  • maximum load capacity (TV+ceiling cover) up to 45kg
  • lift weight 75kg
  • maximum opening angle by 95o
  • maximum vesa 800x600mm
  • when closed, panel faces upwards
  • powder coat coloring of metallic parts in black RAL9005 or white RAL9016
  • Standard control method embedded dry contacts
  • Optional controls: RF remote control, RS232

It is recommended that the net inner depth of installation false ceiling, is approximately 1-2cm greater than the height of the lift, in order to prevent problems from bumps on the surface of the ceiling or from crooked surfaces.
