Flat Panel Ceiling Lift FPLC V2 SLIM 52-60

FPLC V2 SLIM 52-60

FPLC V2 Slim series of flat panel ceiling lift mechanisms is characterized by excellent utility, slim profile and unique features. Elegant and silent, this popular series of lifts is constantly enriched by new models! FPLC V2 Slim with simple swiveling at 110 degrees from ceiling and minimum ceiling depth required at just 160mm! Model type :FPLCV2SLIM52-60

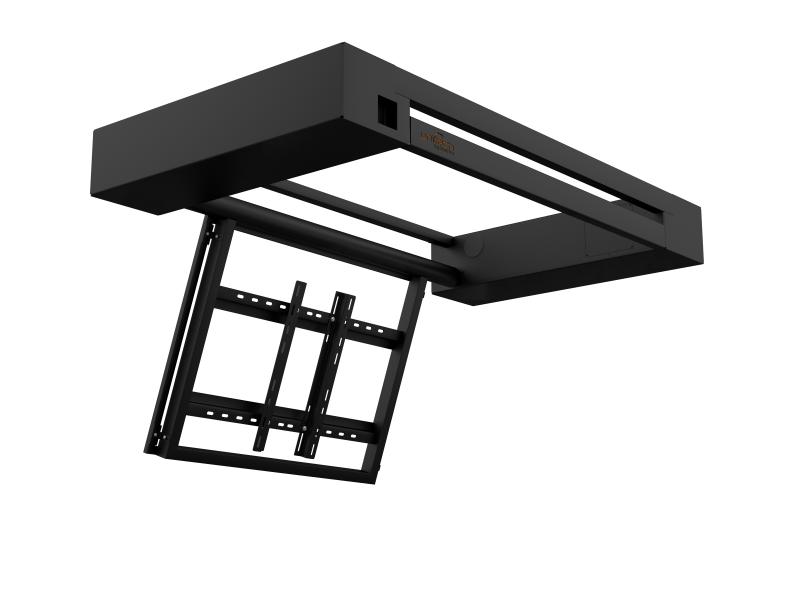

Fplc V2 Slim 52 60 Main Image
Fplc V2 Slim 52 60 Main Image

Features

  • suitable for panels with maximum dimensions 1480x900x90mm
  • lift dimensions (WxLxH) 1912x1045x160mm
  • maximum opening angle at 110o
  • minimum required false ceiling depth 160mm
  • maximum vesa 800x600mm
  • maximum load capacity (TV+ceiling cover) 45kg
  • lift weight 84kg
  • powder coating in RAL 9005 black or RAL 9016 white

It is recommended that the net inner depth of installation false ceiling, is approximately 2cm greater than the height of the lift, in order to prevent problems from bumps on the surface of the ceiling or from crooked surfaces.

Specifications

  • suitable for panels with maximum dimensions 1480x900x90mm
  • lift dimensions (WxLxH) 1912x1045x160mm
  • maximum opening angle at 110o
  • minimum required false ceiling depth 160mm
  • maximum vesa 800x600mm
  • maximum load capacity (TV+ceiling cover) 45kg
  • lift weight 84kg
  • powder coating in RAL 9005 black or RAL 9016 white
  • standard control option : dry contacts control box
  • optional controls: RF remote control, RS232 ports
  • power supply: 110-230VAC-50/60Hz

It is recommended that the net inner depth of installation false ceiling, is approximately 2cm greater than the height of the lift, in order to prevent problems from bumps on the surface of the ceiling or from crooked surfaces.
