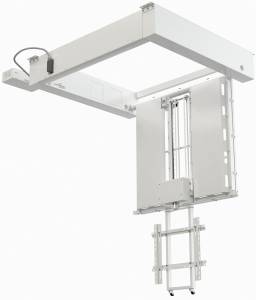

Flat Panel Ceiling Lift with vertical motion and rotation FPLCV2-42-50+R+LM+LOCK

FPLCV2-42-50+R+LM+LOCK

Unitech Systems presents the ceiling lifts comprising swiveling motion, vertical lowering motion and screen bi-directional rotation up to 180degrees. Silent, safe & ready to install, all lifts of FPLCV2+R+LM series is equipped with electric safety locking mechanism in closed position. The lift’s solid & firm construction provides maximum duration in time & safety in installation, in addition to its excellent utility!

Model: FPLCV2-42-50+R+LM+LOCK

Features

Maximum flat panel dimensions (WxHxD) ≤ 1280x755x90mm
Maximum load : (TV weight + ceiling cover) ≤ 45kg
Lift dimensions (WxHxD) 1615x300x1485mm (excluding control box)
Maximum swiveling angle 90degrees
Vertical lowering motion 795mm
Rotation ability (CW & CCW) +/-180degrees both ways : 180o CW & 180o CCW
Adjustable hole pattern for flat panel mounting (vesa) up to 800x400mm
Standard color of metallic parts: epoxy coating in RAL 9005 black or RAL 9016 white
Power supply wire control at 110-230VAC-50Hz

It is recommended that the net inner depth of installation false ceiling, is approximately 2cm greater than the height of the lift, in order to prevent problems from bumps on the surface of the ceiling or from crooked surfaces.

Specifications

Maximum flat panel dimensions (WxHxD) ≤ 1280x755x90mm
Maximum load : (TV weight + ceiling cover) ≤ 45kg
Lift dimensions (WxHxD) 1615x300x1485mm (excluding control box)
Maximum swiveling angle 90degrees
Vertical lowering motion 795mm
Rotation ability (CW & CCW) +/-180degrees both ways : 180o CW & 180o CCW
Adjustable hole pattern for flat panel mounting (vesa) up to 800x400mm
Standard color of metallic parts: epoxy coating in RAL 9005 black or RAL 9016 white
Power supply wire control at 110-230VAC-50Hz
Standard control option: dry contacts control box
Optional controls: RF remote control, RS 232 ports
