FPCRMV4-LME-RAIL Systems for ceiling applications!

FPCRMV4-LME-RAIL

Utility and Elegance in Rails!

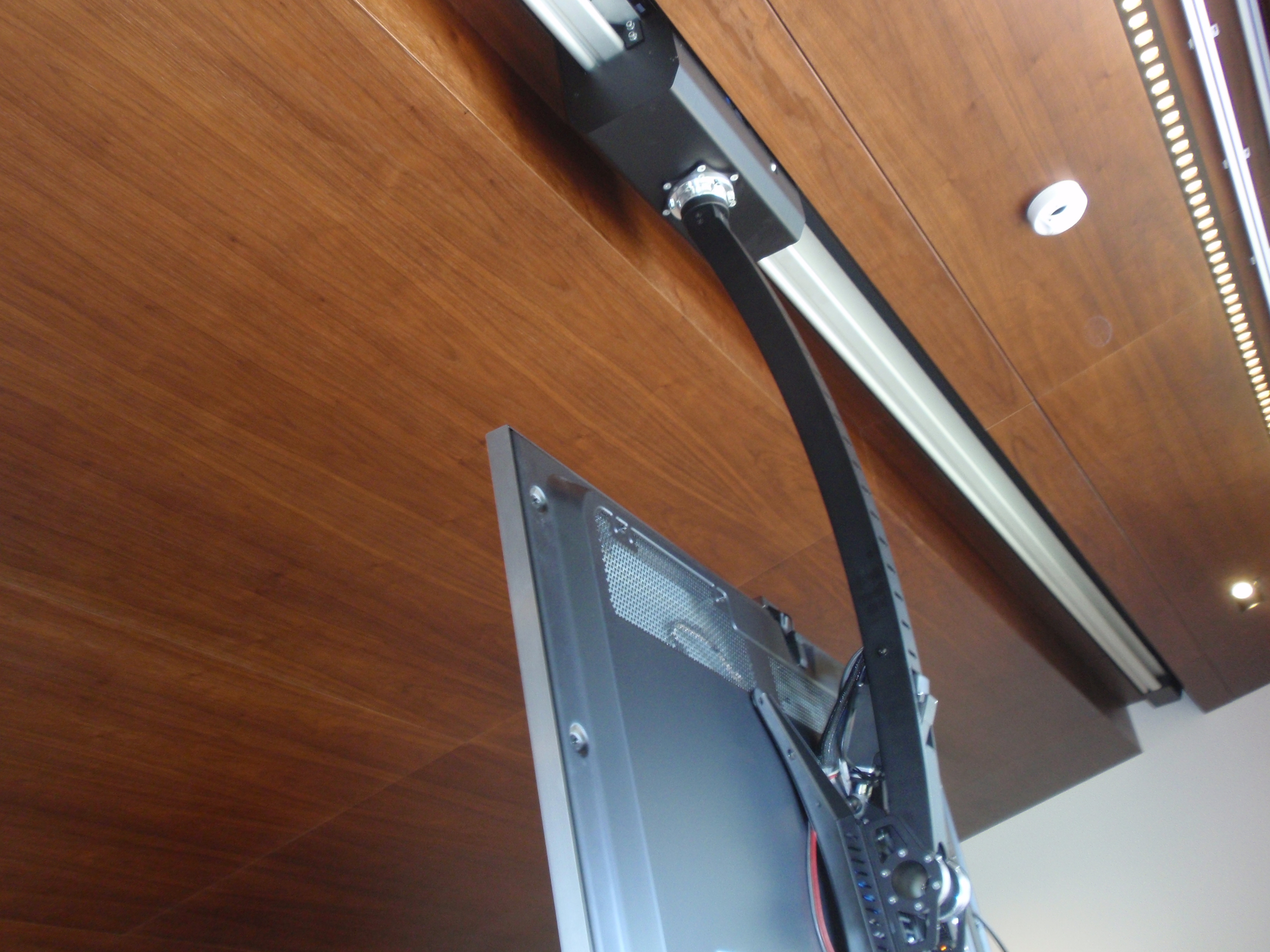

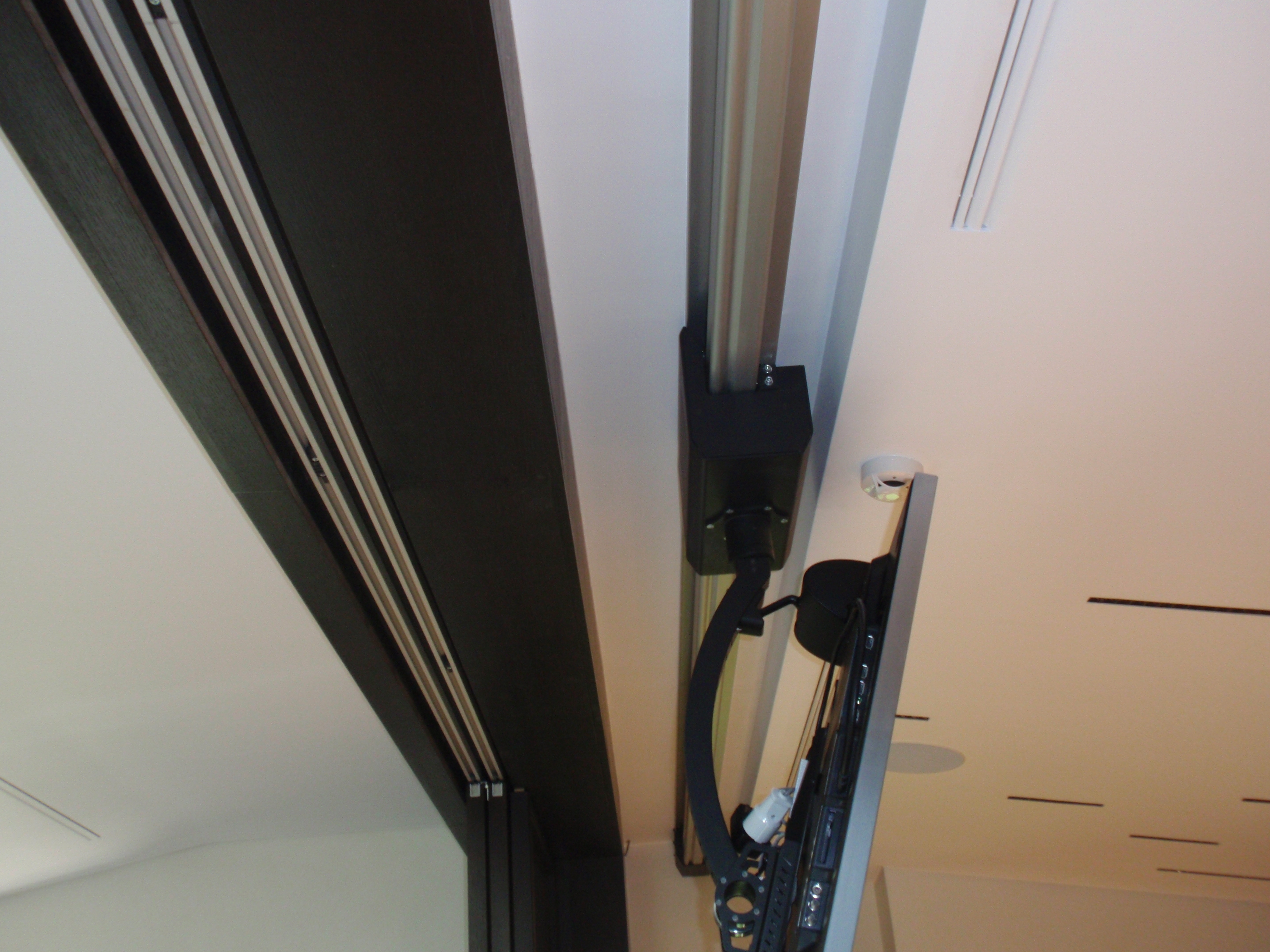

The FPCRMV4 flexible Rail-System has been designed to meet the modern needs of A/V market, providing features of horizontal and vertical motion, as well as rotation, in combination with a low profile aluminum rail, easy to hide or unify with other features of ceiling.

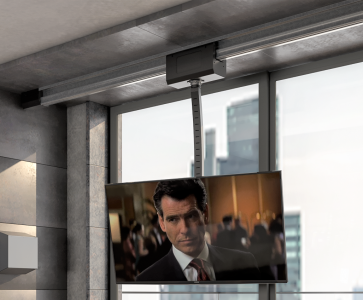

Fpcrmv4 Rail 2021 02 1 Thumb
Fpcrmv4 Rail 2021 02 1 Thumb

Features

  • horizontal run length up to 12 meters, setup in any intermediate length desired by the client
  • automated electric linear motion
  • optional automated electric full rotation of suspended mount up to 300degrees
  • optional electric tilt ability
  • suspension of AV equipment by fixed height arm mount, in five (5) standard heights from 50cm up to 100cm
  • mounting flanges according to standard vesa or customized mounting hole patterns
  • invisible cable routing inside the aluminum ceiling rail, in cable chain
  • Elegant design
  • coloring of aluminum rail in aluminum anodized color
  • smooth motion
  • safety in application
  • easy installation
  • silent motion

Specifications

  • total length on ceiling from 1-12meters
  • maximum weight of suspended equipment
    • 50kg in fixed arm mount
    • 35kg in lift mechanism

Manuals

Only for Registered Users

fpcrmv4lm main image

FPCRMV4 RAIL 2021 02 1 thumb

FPCRMV4 RAIL 2021 02 1 sm

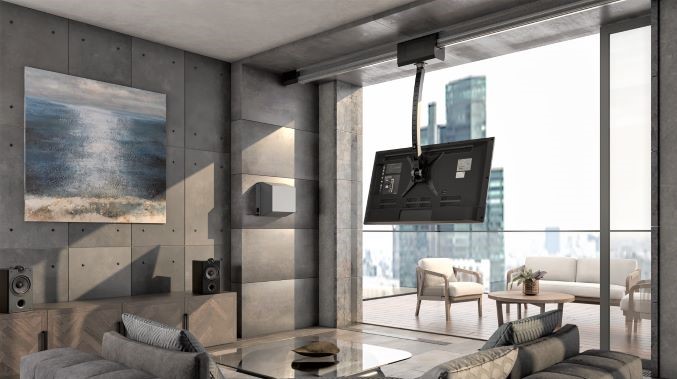

FPCRMV4 RAIL 2021 03 1 sm

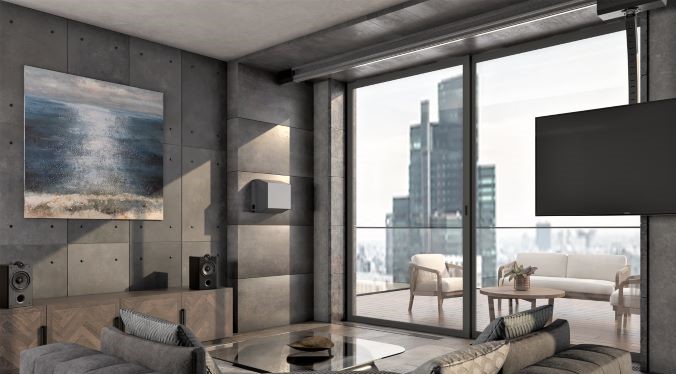

FPCRMV4 RAIL 2021 01 1 sm
