Unitech Systems steps forward again !
October 2010
Unitech Systems, the manufacturing company specializing in AudioVisual mechanical applications, steps forward again, introducing a new series of 19” Racks, especially designed for use in rooms with a lot of vibrations.

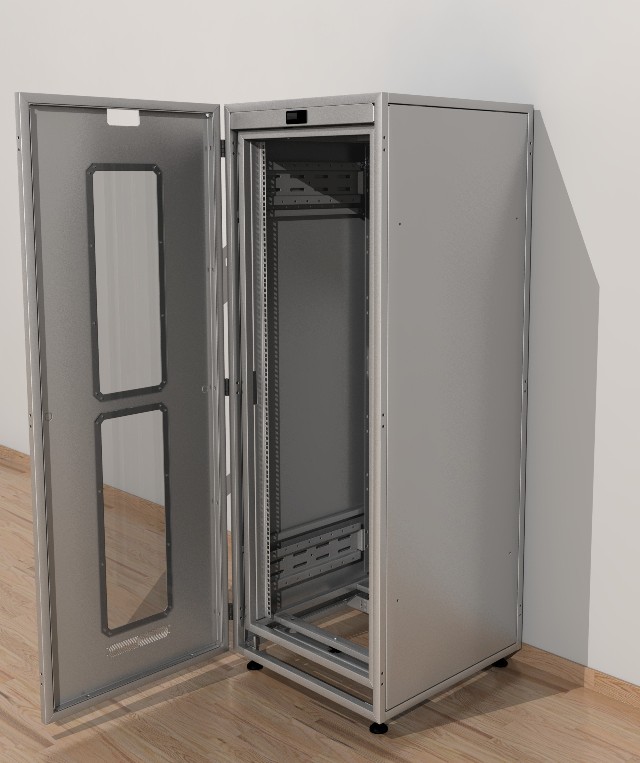

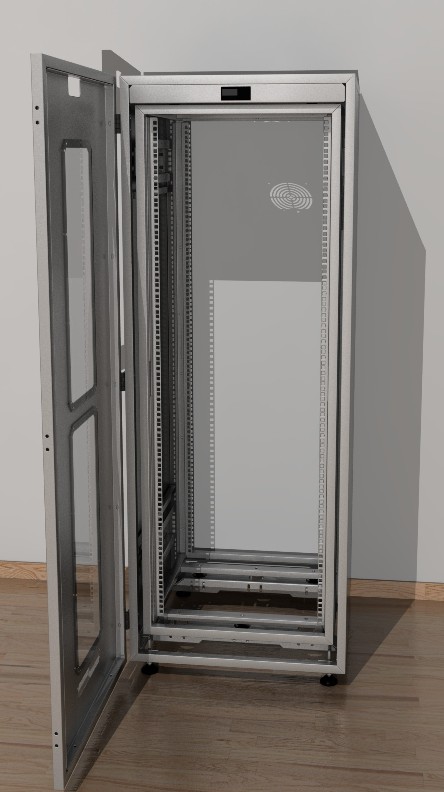

Anti Vibration 19” Rack
- The innovating design of this series, allows the firm instalment of the racks, protecting at the same time the equipment mounted in them by reducing at minimum the vibrations transmitted from the rack’s body to the equipment.
- This is achieved with the use of double rack module (box in the box) and the use of anti-shock accessories.
- The Anti Vibration features can be adjusted according to the weight of the equipment installed in the rack, providing this way the maximum resistance in vibration transmission possible.
- The Anti Vibration 19” Rack series is ideal for use in multi vibration environment, such as ships and general marine applications, automobiles, airplanes, mobile operation centers, etc, where vibrations can be destructive for sensitive equipment (e.g. servers, etc).
- Standard dimensions for this series of racks include: 22U, 32U andι 42U, with depth 650 & 1050mm.
- Anti Vibration 19” Racks can be assembled in banks and can be accompanied by several accessories like doors, side covers, roof ventilation, telescopic shelves, etc.
- The doors of Anti Vibration 19” Rack series are designed in such a way so that the user can have visual contact with the inside of the racks.
Additional Features:
- An innovating feature of the new Anti Vibration 19” rack series, exclusively designed by Unitech Systems, is the air fans on the front door, which allow the equipment that need air flow from their front side to be adequately ventilated.
- The new Anti Vibration 19” rack is accompanied by a digital temperature controller at the front side, which displays the temperature inside the rack and has two independent signal controls that can be used for alarm, secondary ventilation system start, etc.
Accessories
- Blank panels (1U, 2U, 3U, 4U και 6U)
- Shelves 19” (1U, 2U, 3U και 4U)
- Telescopic shelves 19” (1U, 2U και 3U) with telescopic run 400mm and 700mm.
- Drawers 19” (1U, 2U και 3U)
- Telescopic shelve with 17” monitor and keyboard.
- Set of wheels (turned and with break).
Various accessories like multi sockets, screws, grills of cables, etc.
As always, Unitech Systems has the ability to design customized solutions, depending on client needs.
